Used to be installed in the end of the tray at the end of the route.

The sides of the current transformers, corresponding to inlet and outlet of the primary winding, are designated as L1 (L1) and L2 (L2), the secondary windings outlets are designated as I1 (I1) and I2 (I2).

The casing and separable core of current transformers are disconnectable and they are connected with the use of fastening screws.

The terminal clamps of the secondary winding are covered with transparent cover that ensures the safety of the operation. In addition, the cover can be sealed. This is especially important in electricity metering circuits, as it allows you to prevent unauthorized access to the screw terminals of the secondary winding.

The transformer casing is made of self-extinguishing plastic, that ensures fire and electrical safety.

Current transformer

Primary rated current

Secondary rated current

Accuracy class

Secondary connection

With copper rail

Opening width

Opening height

Nominal voltage

Model

Nominal frequency

Max operating voltage

Snap mounting

Secondary rated apparent power

With shock protection

Calibrated

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

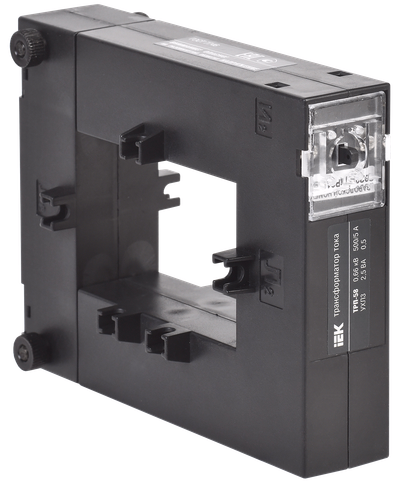

Current transformer TRP-58 500/5 2,5BA accuracy class 0,5

Primary rated current, А	500
Secondary rated current, А	5
Accuracy class	0,5
Secondary connection	Винтовое соединение
With copper rail	Нет
Opening width, мм	50
Opening height, мм	80
Nominal voltage, В	660
Model	Преобразователь тока с первичной обмоткой
Nominal frequency, Гц	50
Accuracy class	0,5
Max operating voltage, кВ	0,72
Snap mounting	Нет
Secondary rated apparent power, ВА	2,5
With shock protection	Да
Calibrated	Да

Current transformer TRP-58 500/5 2,5BA accuracy class 0,5
