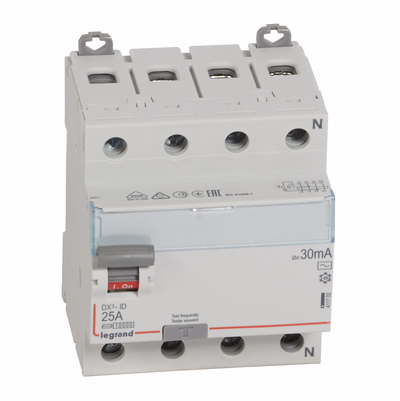

Differential current switch DX3 -ID - 4P - 400V - 25A - type AC - 30ma - 4 modules
New
Product ID:
Main specifications
| Primary current, А | 25 |
| Number of poles | 4 |
| Short-circuit conventional residual current, кА | 0,25 |
| Rated fault current, А | 0.03 |
| Leakage current type | Переменный (AC) |
Specifications
| Primary current, А | 25 |
| Number of poles | 4 |
| Short-circuit conventional residual current, кА | 0,25 |
| Rated fault current, А | 0.03 |
| Leakage current type | Переменный (AC) |
| Selective protection | Нет |
| Nominal voltage, В | 400 |
| Max. cross section incoming cable, мм² | 16 |
| Degree of protection (IP) | IP20 |
| Additional equipment possible | Нет |
| Electric wear resistance, циклов | 10000 |
| Nominal operating voltage, В | 400 |
| Operation mode | Продолжительный-S1 |
| Nominal rated voltage, В | 400 |
| Pollution degree | 2 |
| Rated surge voltage invariability, кВ | 4 |
| Mounting method | На DIN рейку |
| Rated short-circuit breaking capacity EN 60898, кА | 6 |
| Residual current deviation, мА | 30 |
| Width in number of modular spacings | 4 |
| With interlocking device | Нет |
| Rated fault current adjustable | Нет |
| Rated short-circuit breaking capacity IEC 60947-2, кА | 6 |
| Delay adjustable | Нет |
| Surge current capacity, кА | 4 |
| Mechanical wear resistance, циклов | 20000 |
| Rated insulation voltage Ui, В | 400 |
| Frequency | 50/60 Гц |
| Short-time delayed tripping | Нет |
| Short-circuit breaking capacity (Icw), кА | 10 |
| Nominal rated current, А | 63 |
| Rated switching capacity, кА | 6 |
| Built-in depth, мм | 60.9 |
| Rated impulse withstand voltage Uimp, кВ | 4 |
| Ambient temperature during operating, °C | -25...70 |
| Connectable conductor cross section multi-wired, мм² | 10 |
| Connectable conductor cross section solid-core, мм² | 16 |
