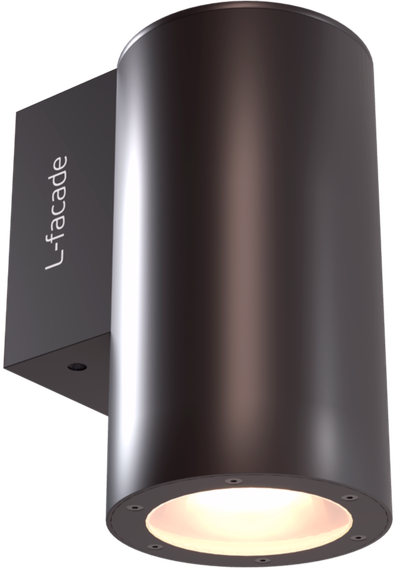

L-facade luminaire 32/G22/840/01/A2-11/220AC IP66 LEDEL
Product ID:
Main specifications
| Max. system power, Вт | 32 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3000 |
| Degree of protection (IP) | IP66 |
| Material housing | Алюминий |
| Colour housing | Прочее |
Description
Electrical installation products of the GLORY series are a combination of style, ergonomics and functionality. Thanks to their laconic design, the products look harmonious in the interiors of country houses and commercial spaces in the loft or minimalist style. A wide palette of shades allows you to choose a solution that will highlight the individuality of your interior.
Design Features
Specifications
| Max. system power, Вт | 32 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3000 |
| Degree of protection (IP) | IP66 |
| Material housing | Алюминий |
| Colour housing | Прочее |
| With movement sensor | Нет |
| Special application | Прочее |
| Dimming manufacturer's proprietary system | Нет |
| Control unit included | Да |
| Suitable for lamp power, Вт | 32 |
| Filament test according to IEC 60695-2-11 | 650 C - 30 s |
| Fit for monitor workplace | Нет |
| EFFICIENCY, процентов | 90 |
| Light outlet | Прямой |
| Type of gear | Светодиодный драйвер |
| With lamp | Да |
| Suitable for built-in mounting | Нет |
| Light distribution class | П |
| Dimming potentiometer (integrated) | Нет |
| Lamptype | Светодиодная незаменяемая |
| Suitable for number of lamps | 1 |
| Suitable for light line configuration | Нет |
| Dimming with push-button | Нет |
| Dimming phase cut-on | Нет |
| Dimming 0-10 V | Нет |
| Length, мм | 183 |
| Material cover | Поликарбонат |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Power supply energy efficiency index (EEI) | A2 BAT |
| Dimming DALI | Нет |
| Suitable for ceiling mounting | Да |
| Dimming DSI | Нет |
| Lamp holder | Прочее |
| Suitable for suspended mounting | Нет |
| Fire resistance "D" | Нет |
| Suitable for emergency lighting | Нет |
| Suitable for wall mounting | Да |
| Type of grid | Нет |
| Height/depth, мм | 240.0 |
| Nominal voltage, В | 230 |
| Luminous flux pulsation factor, процентов | ≤ 2 |
| Ambient class | УХЛ1 |
| Suitable for surface mounting | Да |
| Light colour category | Нейтральный (холодно-белый) 3300-5300 К |
| Dimming DMX | Нет |
| Dimming Touch and Dim | Нет |
| Outer diameter, мм | - |
| Dimming GPRS | Нет |
| Radiation angle | 22 |
| Dimming 1-10 V | Нет |
| Colour temperature, К | 4000 |
| Voltage type | Переменный (AC) |
| Light distributor | Рассеивающая линза или панель |
| Energy efficiency class of the provided exchangeable built-in lamp | A+ |
| Light sharing | Симметричный (-ое) |
| No dim function | Да |
| Dimming LineSwitch | Нет |
| Width, мм | 131.0 |
| Mounting height/depth (embedded), мм | - |
| Dimming depending on the control mechanism | Нет |
