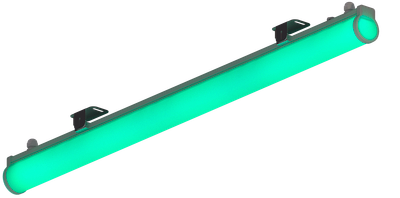

L-contour 550/7,8/D/Green/03/A1-B2/24DC IP66 LEDEL
Product ID:
Main specifications
| Max. system power, Вт | 7,8 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 694 |
| Degree of protection (IP) | IP66 |
| Material housing | Поликарбонат |
| Colour housing | Нет |
Description
The vertical internal rotation of 90 ° is designed to organize the rotation of the cable route in the vertical plane. The accessory of the accessory with the tray is carried out at the expense of the telescopic connector. Suitable for all types of leaf trays of the ESCA series. The cover for the accessory is ordered separately. The accessory is made of steel galvanized by Senziri (a protective layer of zinc at least 5-10 microns).
Design Features
Specifications
| Max. system power, Вт | 7,8 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 694 |
| Degree of protection (IP) | IP66 |
| Material housing | Поликарбонат |
| Colour housing | Нет |
| Dimming Touch and Dim | Нет |
| Lamptype | Светодиодная незаменяемая |
| Dimming depending on the control mechanism | Нет |
| Height/depth, мм | 109.0 |
| Fire resistance "D" | Нет |
| Lamp holder | Прочее |
| Dimming manufacturer's proprietary system | Нет |
| Mounting height/depth (embedded), мм | - |
| Suitable for emergency lighting | Нет |
| Ambient class | УХЛ1 |
| Control unit included | Да |
| With movement sensor | Нет |
| Light sharing | Симметричный (-ое) |
| Outer diameter, мм | - |
| Power supply energy efficiency index (EEI) | A2 BAT |
| Suitable for lamp power, Вт | 7,8 |
| Dimming DSI | Нет |
| Suitable for light line configuration | Да |
| Suitable for number of lamps | 1 |
| Type of grid | Нет |
| Width, мм | 57.0 |
| Dimming GPRS | Нет |
| Dimming potentiometer (integrated) | Нет |
| Suitable for surface mounting | Да |
| Light distribution class | П |
| Suitable for built-in mounting | Нет |
| Material cover | Поликарбонат |
| Suitable for wall mounting | Да |
| Dimming DALI | Нет |
| Nominal voltage, В | 24 |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Suitable for suspended mounting | Нет |
| With lamp | Да |
| Voltage type | Постоянный (DC) |
| Filament test according to IEC 60695-2-11 | 650 C - 30 s |
| Suitable for ceiling mounting | Да |
| Length, мм | 550 |
| Type of gear | Светодиодный драйвер |
| Special application | Прочее |
| Dimming 1-10 V | Нет |
| Light outlet | Прямой |
| Fit for monitor workplace | Нет |
| Dimming LineSwitch | Нет |
| Dimming 0-10 V | Нет |
| Light distributor | Рассеивающая линза или панель |
| Dimming with push-button | Нет |
| No dim function | Да |
| Dimming phase cut-on | Нет |
| Dimming DMX | Нет |
| Colour temperature, К | - |
| Energy efficiency class of the provided exchangeable built-in lamp | A+ |
| Luminous flux pulsation factor, процентов | ≤ 2 |
| EFFICIENCY, процентов | 90 |
