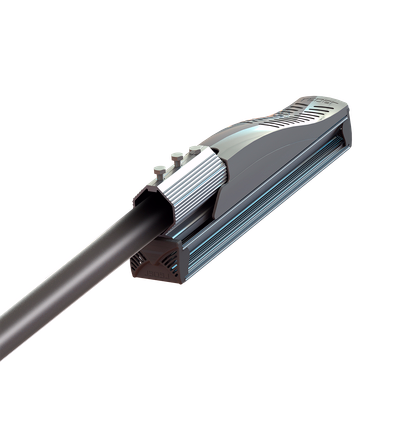

L-street luminaire 24/32/SH3/5.0K/01/SKII-01/220AC/Premium IP66 LEDEL
Product ID:
Main specifications
| Power consumption, Вт | 32 |
| Luminous flux, лм | 4306 |
| Width, мм | 83.0 |
| Colour temperature, К | 5000 |
| Suitable for number of lamps | 1 |
Design Features
Specifications
| Power consumption, Вт | 32 |
| Luminous flux, лм | 4306 |
| Width, мм | 83.0 |
| Colour temperature, К | 5000 |
| Suitable for number of lamps | 1 |
| KSS type | Ш |
| Degree of protection (IP) | IP66 |
| Ambient temperature, °C | -60...40 |
| Material housing | Металл |
| Mounting method | Консольный |
| Suitable for top end size, мм | - |
| Material cover | Поликарбонат |
| Voltage type | Переменный (AC) |
| Mounting height, м | 8...14 |
| Dimming DALI | Нет |
| Dimming phase cut-on | Нет |
| Suitable for lamp power, Вт | 32 |
| Dimming manufacturer's proprietary system | Нет |
| Power factor | ≥ 0,95 |
| Light distributor | Рассеивающая линза или панель |
| Max. system power, Вт | - |
| No dim function | Да |
| Lamp holder | Прочее |
| Colour rendering index | 70-79 (класс 2A) |
| Control unit included | Нет |
| Dimming 1-10 V | Нет |
| Colour temperature, К | 5000 |
| Lamptype | Светодиодная незаменяемая |
| Protection class | I |
| Dimming with push-button | Нет |
| Type of gear | Светодиодный драйвер |
| Dimming GPRS | Нет |
| Type of wiring | Оконечная |
| Nominal voltage, В | 230 |
| Remote control | Нет |
| With lamp | Да |
| Dimming potentiometer (integrated) | Нет |
| Max. lamp power, Вт | 32 |
| Dimming DSI | Нет |
| Diameter, мм | - |
| Colour of light | Белый |
| Fire resistance "D" | Нет |
| Height, мм | 142.0 |
| Colour housing | Алюминий |
| Dimming LineSwitch | Нет |
| Ignitor | Не требуется |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Rated luminous flux acc. IEC 62722-2-1, лм | 4306 |
| Dimming Touch and Dim | Нет |
| Length, мм | 533.0 |
| Power factor | ≥ 0,95 |
| Dimming 0-10 V | Нет |
| Dimming DMX | Нет |
