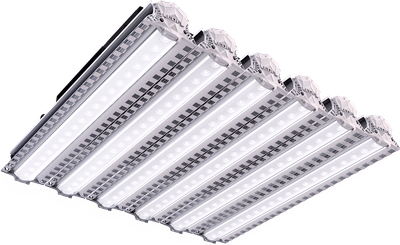

L-industry Turbine HB6/360/G30/5.0K/01/I7-26/220AC IP66 LEDEL
Product ID:
Main specifications
| Lamp power, Вт | 360 |
| Luminous flux, лм | 50400 |
| Degree of protection (IP) | IP66 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 50400 |
| Colour temperature, К | 5000 |
Description
The connecting section is designed to connect the busbar to a dry transformer
Design Features
Specifications
| Lamp power, Вт | 360 |
| Luminous flux, лм | 50400 |
| Degree of protection (IP) | IP66 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 50400 |
| Colour temperature, К | 5000 |
| Material housing | Алюминий |
| Colour housing | Алюминий |
| Mounting method | Накладн. на поверхность/подвесной |
| Voltage type | Переменный (AC) |
| Colour temperature, К | 5000 |
| Frequency | 50 Гц |
| With protective cover | Да |
| Fire resistance "D" | Нет |
| Suitable for lamp power, Вт | 360 |
| Control unit included | Нет |
| Fire resistance "F" | Нет |
| With lamp | Да |
| Lamptype | Светодиодная незаменяемая |
| Suitable for emergency lighting | Нет |
| Ambient temperature, °C | -60...40 |
| Shade material | Поликарбонат |
| Grid perforated | Нет |
| Lamp holder | Прочее |
| Impact strength | IK10 |
| Fire resistance "FF" | Нет |
| Suitable for number of lamps | 6 |
| Power factor | ≥ 0,9 |
| KSS type | Г |
| Max. system power, Вт | 360 |
| Filament test according to IEC 695-2-1 | 650 |
| With protective grille/cage/visor | Нет |
| Height/depth, мм | 262 |
| Nominal voltage, В | 230 |
| Ignitor | Не требуется |
| Ignitor included | Нет |
| Protection class | I |
| Colour rendering index | EV003582 |
| Type of gear | Светодиодный драйвер |
| Width, мм | 568 |
| Ball-proof | Нет |
| Length, мм | 524 |
