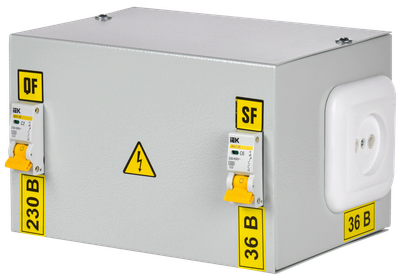

Step-down transformer box YATP-0,25 220/36-2 36 IP30

Product ID:

Main specifications

Rated operating voltage of transformer primary winding, В	230±5%
Rated operating voltage of transformer secondary winding, В	36±5%
Primary rated current, А	2
Secondary rated current, А	6
Complete device in housing	Да

Rated operating voltage of transformer primary winding, В	230±5%
Rated operating voltage of transformer secondary winding, В	36±5%
Primary rated current, А	2
Secondary rated current, А	6
Complete device in housing	Да
Type of earthing system	TN-S
Weight, кг	6
Rated surge voltage invariability, кВ	2,5
Secondary voltage 1, В	-
Height, мм	130
Type of insulation material acc. IEC 85	A
Ambient temperature, °C	-5...+40
Short circuit strength, кА	4,5
Width, мм	220
Rated apparent power, ВА	250
Primary voltage 1, В	-
Modular version	Нет
Relative short circuit voltage, процентов	-
Nominal electric insulation strength, В	600
Depth, мм	155
Type of electrical connections of functional units	FFX
Cross section wiring cores, мм²	1,5...2,5
Nominal frequency, Гц	50
Surface protection	Эпоксидно-полиэфирная краска
Cable type	ВВГ
Degree of protection (IP)	IP30
