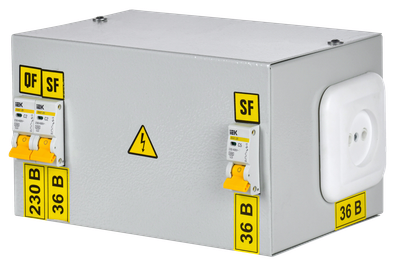

Step-down transformer box YATP-0,25 220/36-3 36 IP30
Main specifications
| Rated operating voltage of transformer primary winding, В | 230±5% |
| Rated operating voltage of transformer secondary winding, В | 36±5% |
| Primary rated current, А | 2 |
| Secondary rated current, А | 7 |
| Complete device in housing | Да |
Description
Patch cords are switching cords designed for switching the data transmission lines between different sections of switching panels, connecting the active switching or server equipment to the network, as well as for connecting the phones and computers to information sockets. The main characteristic of the cords is their resistance to multiple loads of bending and torsion, which is provided by a multi-wire conductor. The most common and popular types of connectors are RJ45-RJ45.
All ITK patch cords are marked with cable category, number of pairs, type and diameter of conductors, cord length. For ease of installation, reduction of errors in the termination and switching the lines in switchgears, as well as separation of cable lines, depending on the application, the range of ITK patch cords provides different color options.
Design Features
Specifications
| Rated operating voltage of transformer primary winding, В | 230±5% |
| Rated operating voltage of transformer secondary winding, В | 36±5% |
| Primary rated current, А | 2 |
| Secondary rated current, А | 7 |
| Complete device in housing | Да |
| Nominal frequency, Гц | 50 |
| Surface protection | Эпоксидно-полиэфирная краска |
| Cable type | ВВГ |
| Secondary voltage 1, В | - |
| Relative short circuit voltage, процентов | - |
| Type of electrical connections of functional units | FFX |
| Degree of protection (IP) | IP30 |
| Rated apparent power, ВА | 250 |
| Short circuit strength, кА | 4,5 |
| Type of insulation material acc. IEC 85 | A |
| Depth, мм | 155 |
| Primary voltage 1, В | - |
| Width, мм | 220 |
| Type of earthing system | TN-S |
| Modular version | Нет |
| Cross section wiring cores, мм² | 1,5...2,5 |
| Weight, кг | 6 |
| Nominal electric insulation strength, В | 600 |
| Rated surge voltage invariability, кВ | 2,5 |
| Ambient temperature, °C | -5...+40 |
| Height, мм | 130 |
Documents
Passports
Set contains
Ящик - 1 шт.
Паспорт - 1 экз.
