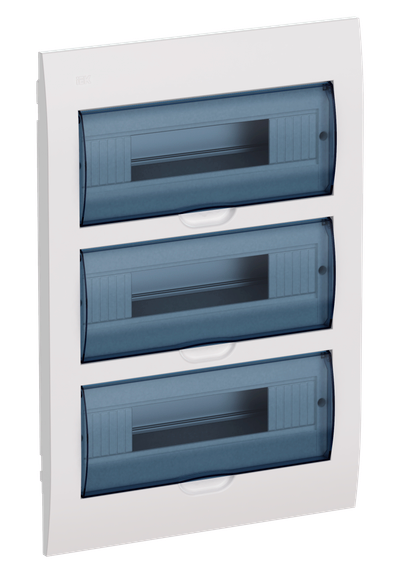

KREPTA 3 Flush-mounting plastic distribution enclosure 36 modules IP41 white

KREPTA 3 Flush-mounting plastic distribution enclosure 36 modules IP41 white
Product ID:

Main specifications

Mounting methodСкрытого монтажа (в штукатурку)
Width in number of modular spacings36
Number of rows3
ColourБелый
Degree of protection (IP)IP41

Description

Perforated rolling trays are part of the metal cable support systems of the IEK group of companies. Designed for laying and protection of power and low-voltage cables. When used in conjunction with a cover, it provides maximum cable protection against external influences, dust and moisture. Depending on the version, the trays can be used both inside public, industrial buildings, structures and retail facilities, as well as outdoors under a canopy, in the open air, as well as in rooms with high humidity. Rolled perforated trays IEK are made of cold-rolled steel coils, galvanized by a conveyor method or by dipping finished products in a zinc melt. The IEK rolling tray system consists of straight elements and accessories designed to change the direction of the route, as well as covers and connecting elements of various sizes. For safety requirements, the product complies with IEC 61537.

Design Features

Specifications

Mounting methodСкрытого монтажа (в штукатурку)
Width in number of modular spacings36
Number of rows3
ColourБелый
Degree of protection (IP)IP41
Height, мм503.0
Width, мм342.0
Depth, мм88.0
RAL-number9016
Material housingABS пластик
With mounting plateНет
Extension possibleНет
Cover modelЗакрытого типа (закрывающаяся)
EMC-versionНет
With transparent coverДа
Built-in depth, мм56
DIN-railДа
Type of coverЗакрытого типа (закрывающаяся)

Documents

Set contains

  • Паспорт - 1 шт.

  • Суппорт для шин - 2 шт.

  • DIN-рейка - 3 шт.

  • Шина 6х9мм, 8 отв. - 2 шт.

  • Шина 6х9мм, 10 отв. - 2 шт.

  • Лента маркировочная - 3 шт.

  • Комплект метизов - 1 шт.
