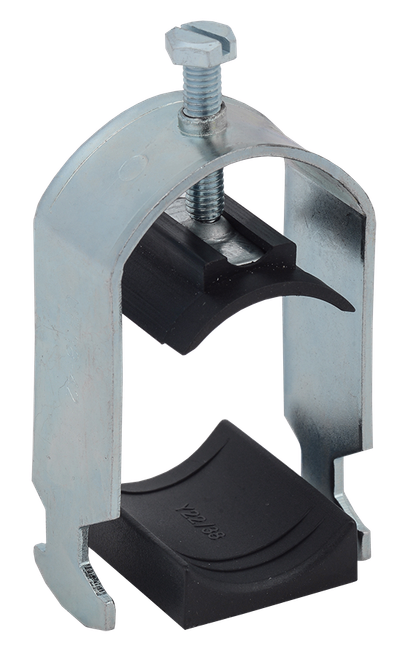

Cable clamp for C-profile cable diameter 30-38mm IEK
Product ID:
Main specifications
| Busbar thickness, мм | 30...38 |
| Busbar width, мм | 30...38 |
| Suitable for | Прочее |
| Width, мм | 43 |
| Nominal voltage, В | 230/400 |
Advantages
- Optimum use of internal space - the possibility of installing the panel in the extreme position of the rear of the cabinet (flush with the frame).
- Unified connecters.
Design Features
Specifications
| Busbar thickness, мм | 30...38 |
| Busbar width, мм | 30...38 |
| Suitable for | Прочее |
| Width, мм | 43 |
| Nominal voltage, В | 230/400 |
| Ambient temperature, °C | -40...+60 |
| Suitable for round conductor connection | Да |
| Depth, мм | 40 |
| Max. rated operation current Ie, А | - |
| Suitable for sector conductor connection | Нет |
| Suitable for strip conductor connection | Нет |
| Height, мм | 100 |
| Max. conductor cross section, мм² | 1134 |
