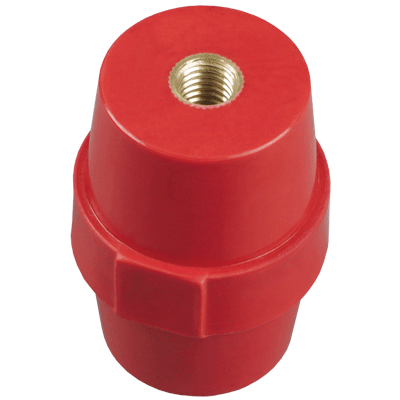

Insulator SM45 (M8) power IEK
Product ID:
Main specifications
| Number of poles | 1 |
| Add-on type | IEK_V0000463 |
| Max. rated current, А | 500 |
| Thread size metric (M..) | 8 |
| Tyre package 5(3), 10(2) | Нет |
Description
PKV(N)tpbe-1 and PKVtpbe-1 heat-shrink sleeves are designed for termination of aluminum or copper conductors of cables with plastic, rubber and polyethylene insulation with armor or shield for voltages up to 1 kV: AVBbShv-1, VBbShv-1, AVVB-1, AVVBG-1, VVB-1, VVBG-1, APvBbShv-1, PvBbShv-1, VVGE, AVVGE, PvVGE, APvVGE, their equivalents and versions. The product's range is developed for 1-, 2-, 3-, 4- and 5-core cables.
Advantages
- Two types of protection against overloads and short circuit.
- Complete set of supplementary devices with the possibility of simple independent installation:
- – State contact KS47;
- – State contact KSV47;
- – Undervoltage trip RMM47;
- – Low-voltage release RN47.
- Improved arc suppression system: extended service life, increased resistance to short-circuit currents.
- Contact position indicator.
- Wide operating temperature range from –40 to +50° С.
- Simultaneous connection by FORK bar and flexible conductor is possible for power supply distribution via upper terminals, as well as connection by PIN bar.
- New ergonomic design of ON/OFF lever.
- Notched terminal clamps reduce the heat loss and increase mechanical stability of the connection.
Design Features
Specifications
| Number of poles | 1 |
| Add-on type | IEK_V0000463 |
| Max. rated current, А | 500 |
| Thread size metric (M..) | 8 |
| Tyre package 5(3), 10(2) | Нет |
| Withstand lightning pulse voltage, кВ | 14.0 |
| Smallest outer diameter, мм | 30 |
| Weight, г | 77 |
| Mechanical destructive torque, кНм | 0.6 |
| Mechanical destructive force on bending, кН | 10 |
| Nominal rated voltage, В | 1000 |
| Ambient temperature, °C | -40...60 |
| Thread length, мм | 11 |
| Colour | Красный |
| Largest outer diameter, мм | 36 |
| Busbar thickness, мм | - |
| Busbar distance, мм | 50...125 |
| Material | Полимерный материал |
| Material quality | Полиамид усиленный стекловолокном |
| Height, мм | 45.0 |
