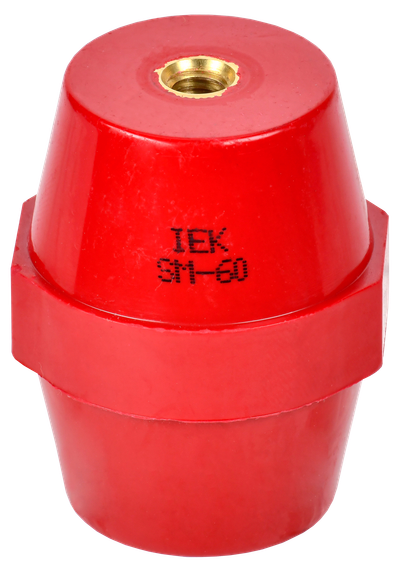

Insulator SM60 (M8) power IEK
Product ID:
Main specifications
| Number of poles | 1 |
| Add-on type | IEK_V0000463 |
| Max. rated current, А | 750 |
| Thread size metric (M..) | 8 |
| Tyre package 5(3), 10(2) | Нет |
Description
Marking plates (markers) are used to mark rows of spring-type terminal assemblies (KPI terminals) in distribution systems. They are installed in the corresponding slots jf the terminal. They are made in the form of plates with ten marking pads. Each pad can be easily disconnected from each other. Marking plates are made in two versions: for central and lateral placement. Markers may also be marked with symbols such as numbering Nos. 1-10 or the symbols such as "L1, L2, L3, N, PE". They are made of plastic.
Design Features
Specifications
| Number of poles | 1 |
| Add-on type | IEK_V0000463 |
| Max. rated current, А | 750 |
| Thread size metric (M..) | 8 |
| Tyre package 5(3), 10(2) | Нет |
| Material quality | Полиамид усиленный стекловолокном |
| Nominal rated voltage, В | 1000 |
| Height, мм | 60.0 |
| Largest outer diameter, мм | 46 |
| Thread length, мм | 15 |
| Material | Полимерный материал |
| Ambient temperature, °C | -40...60 |
| Weight, г | 187 |
| Withstand lightning pulse voltage, кВ | 20.0 |
| Colour | Красный |
| Busbar distance, мм | 50...125 |
| Busbar thickness, мм | - |
| Mechanical destructive torque, кНм | 0.8 |
| Smallest outer diameter, мм | 34 |
| Mechanical destructive force on bending, кН | 20 |
