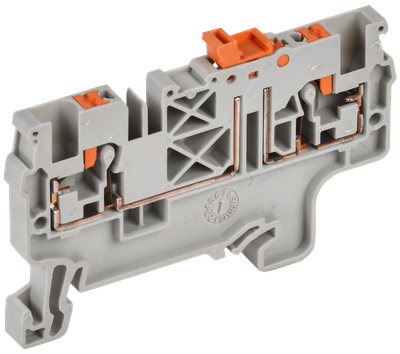

Measuring terminal block CP-DT with disconnect knife 2.5mm2 gray IEK
- Video
Product ID:
Main specifications
| Mounting method | DIN-рейка (стандарт) 35 мм |
| Type of electrical connection 2 | Соединение с пружинным зажимом |
| Width/grid dimension, мм | 5 |
| With integrated test socket | Нет |
| Operation temperature, °C | -40...85 |
Specifications
| Mounting method | DIN-рейка (стандарт) 35 мм |
| Type of electrical connection 2 | Соединение с пружинным зажимом |
| Width/grid dimension, мм | 5 |
| With integrated test socket | Нет |
| Operation temperature, °C | -40...85 |
| Number of levels | 1 |
| Closing plate required | Да |
| Connectable conductor cross section fine-strand with cable end sleeve, мм² | 0,2...2,5 |
| Type of electrical connection 1 | Соединение с пружинным зажимом |
| Number of clamp positions per level | 2 |
| Type of slitting | Поворотный/выдвижной (-ая) |
| Connectable conductor cross section multi-wired, мм² | 0,2...2,5 |
| Nominal rated voltage, В | 1000 |
| Height at lowest possible mounting height, мм | 38 |
| Colour | Серый |
| Connection position | Сверху |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...2,5 |
| Material insulation body | Термопласт |
| Rated current In, А | 20 |
