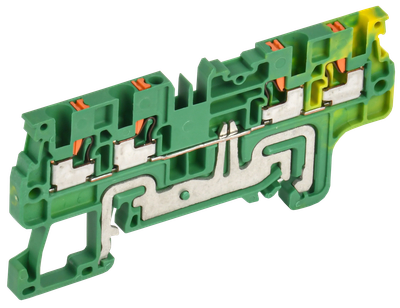

Terminal block CP-MC-PEN grounding 4 pins 1.5mm2 green-yellow IEK
- Video
Product ID:
Main specifications
| PEN function possible | Да |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...1,5 |
| Connectable conductor cross section fine-strand with cable end sleeve, мм² | 0,2...1,5 |
| Connectable conductor cross section solid-core, мм² | 0,2...1,5 |
| Connectable conductor cross section multi-wired, мм² | 0,2...1,5 |
Specifications
| PEN function possible | Да |
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...1,5 |
| Connectable conductor cross section fine-strand with cable end sleeve, мм² | 0,2...1,5 |
| Connectable conductor cross section solid-core, мм² | 0,2...1,5 |
| Connectable conductor cross section multi-wired, мм² | 0,2...1,5 |
| Type of electrical connection 1 | Соединение с пружинным зажимом |
| Type of electrical connection 2 | Соединение с пружинным зажимом |
| Connection position | Сверху |
| Number of levels | 1 |
| Number of clamp positions per level | 4 |
| Mounting method | DIN-рейка (стандарт) 35 мм |
| Material insulation body | Термопласт |
| Operation temperature, °C | -40...85 |
| Width/grid dimension, мм | 4 |
| Height at lowest possible mounting height, мм | 32.8 |
| Length, мм | 63,5 |
| Closing plate required | Да |
| Colour | Желто-зеленый |
| Rated insulation voltage Ui, В | 800 |
