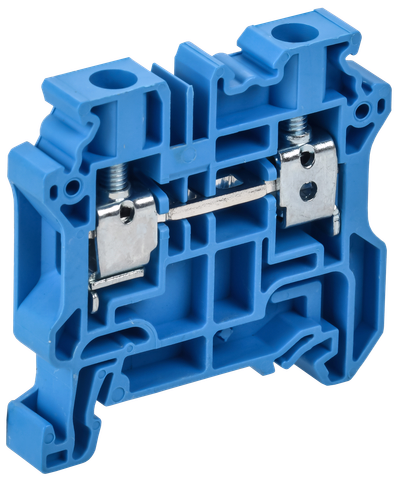

Armafix terminal screw Cy6bu ex IEK
Артикул:
Основные характеристики
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...6 |
| Mounting method | DIN-рейка (стандарт) 35 мм |
| Colour | Синий/голубой |
| Number of levels | 1 |
| Type of electrical connection 1 | Винтовое соединение |
Технические характеристики
| Connectable conductor cross section fine-strand without cable end sleeve, мм² | 0,2...6 |
| Mounting method | DIN-рейка (стандарт) 35 мм |
| Colour | Синий/голубой |
| Number of levels | 1 |
| Type of electrical connection 1 | Винтовое соединение |
| Connection position | Сбоку (поперечное) |
| Operation temperature, °C | -60...110 |
| Number of poles | 1 |
| Rated current In, А | 36 |
| Connectable conductor cross section fine-strand with cable end sleeve, мм² | 0,2...6 |
| Length, мм | 50.00 |
| Connectable conductor cross section multi-wired, мм² | 0,2...6 |
| Nominal rated voltage, В | 630 |
| Closing plate required | Да |
| Type of electrical connection 2 | Винтовое соединение |
| Width/grid dimension, мм | 8.0 |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Connectable conductor cross section solid-core, мм² | 0,2...6 |
| Number of clamp positions per level | 2 |
| Material insulation body | Термопласт |
| Explosion-tested version 'Ex e' | Да |
