For screwless fastening of wire lattice tray to ceiling.

The optimum shape of the radiator increases the heat transfer efficiency by increasing the convection velocity while maintaining small dimensions.

Compact heaters are made of anodized aluminum profile and have a self-regulatory function, that prevents overheating and keeps fire safety.

Plastic elements of the casing, made of self-extinguishing material according to UL94 V0 standard (flame-retardant).

Wide range of operating voltages from 110V to 265V of AC and DC.

Connection of cable by means of clamps makes the installation faster.

Dynamic air heating system is maximally effective at continuous operation and allows to save the energy.

It is mounted vertically on a standard 35 mm DIN-rail.

Longer service life of heaters with high reliability.

Heating (switchgear cabinet)

Mounting method

Rated power

Nominal rated voltage

Heating element

Degree of protection (IP)

With blower

With room temperature controller

With hygrostat

Nominal frequency

Voltage type

Operating voltage at AC 50 Hz

Height

Radiator material

Width

Depth

Operating voltage at DC

Colour housing

Operating temperature range

Type of clamp for wire connection

Material housing

Section of the connected conductors

With digital indication

Ambient class

Continuous heating power at 20

Срок службы, Лет

Гарантийный срок, Лет

Количество

Единицы измерения

Тип упаковки

Материал упаковки

Штрихкод

Вес брутто, кг

Объем, м^3

Длина, см

Ширина, см

Высота, см

Способ нанесения информации

Heater for DIN-rail 150W IP20 IEK

This ATS system provides uninterrupted power supply to one group of consumers from two independent power supply sources (inputs), hereinafter conventionally designated as main and backup, and DGU. At the same time, uninterrupted power supply is achieved by switching consumers from the main source of power supply to the backup one - in case of unacceptable deviations of the electricity parameters at the main input, as well as at the DGU - in the event of a simultaneous deviation at both inputs.

We provide standard circuit diagrams solutions for low-voltage complete power distribution devices. These are not finished products, they are not assembled by us. You can order components according to the specification from partners (the package contents are indicated in the product card below) and assemble the ATS yourself using the attached diagrams and drawings, or contact our partners involved in the assembly of electrical panels, section "Where to buy", Partner type - assembler: http: //www.iek.ru/products/where_to_buy/

Flow rate

DIN rail heater (built-in fan) 100 W IP20 IEK

For transmitting electric power from the lead-in unit to the group ones.

Mounting method	EV000242
Rated power, Вт	100
Nominal rated voltage, В	120...240
Heating element	Позистор
Degree of protection (IP)	IP20
With blower	Нет
With room temperature controller	Нет
With hygrostat	Нет
Height, мм	140
Operating temperature range, °C	-60...+70
Type of clamp for wire connection	Пружинный
Depth, мм	56.5
Radiator material	Алюминий
Voltage type	Перемен./постоян. (AC/DC)
With digital indication	Нет
Section of the connected conductors, мм	0,5...2,5
Nominal frequency, Гц	50
Continuous heating power at 20, Вт	100
Ambient class	У2.1
Operating voltage at AC 50 Hz, В	230
Width, мм	70.0
Colour housing	Черный
Operating voltage at DC, В	230
Material housing	Полиамид 66

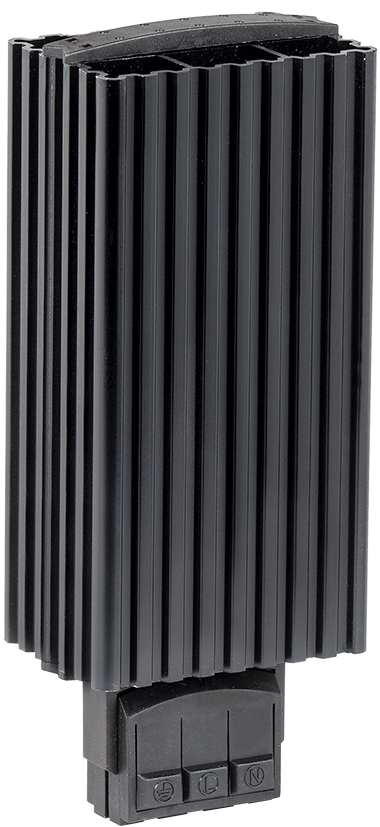

Heater for DIN-rail 100W IP20 IEK
