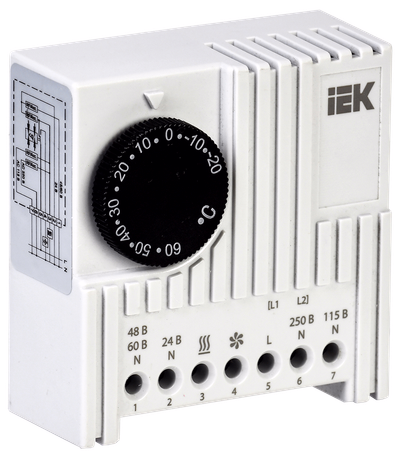

THERMOSTAT UKKT -20 to +60°C NO/NC IEK
Product ID:
Main specifications
| Adjustment range temperature, °C | -20...60 |
| Type of switch function | Нормально размыкающий контакт и нормально замыкающий контакт |
| With hygrostat | Нет |
| Height, мм | 71.0 |
| Hysteresis, К | 1±0,8 |
Description
The T-shaped outlet cover is designed to protect the cable from external environmental influences and mechanical damage. Designed for joint use with a horizontal T-bend of the ESCA 5 series in a thickness of 1.2 mm. The accessory is made of galvanized steel using the hot-dip method (the protective layer of zinc is at least 55 microns).
Advantages
- High light output.
- Possibility to choose from several KSS.
- Case material - aluminum alloy, providing efficient heat dissipation.
- Impact-resistant body.
Design Features
Specifications
| Adjustment range temperature, °C | -20...60 |
| Type of switch function | Нормально размыкающий контакт и нормально замыкающий контакт |
| With hygrostat | Нет |
| Height, мм | 71.0 |
| Hysteresis, К | 1±0,8 |
| Degree of protection (IP) | IP20 |
| Depth, мм | 32.0 |
| Nominal rated voltage, В | 240 |
| Rated current In, А | - |
| Ambient temperature, °C | -60...60 |
| Weight, кг | 0.10 |
| Mounting method | Безвинтовое зажимное крепление |
| Section of single-core connected conductors, мм² | 2,5 |
| RAL-number | 7035 |
| Cross section of multicore connected conductors, мм² | 1,5 |
| Material housing | Полиамид 66 |
| With digital indication | Нет |
| Width, мм | 71.0 |
| Colour | Серый |
| Protection class in accordance with GOST IEC 61140 | II |
| Ambient class | У2.1 |
| Maximum start-up current, А | 16 А в течении 10 с |
| Maximum switching capacity, А | 10(4) |
