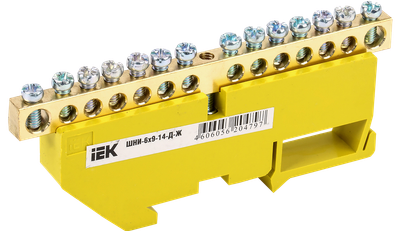

Neutral bus bar with DIN-insulator SHNI-6x9-14-D-ZH IEK
Product ID:
Main specifications
| Number of connections | 14 |
| Nominal rated current, А | 100 |
| Material | Латунь |
| Width, мм | 88.5 |
| Suitable for 19 inch mounting | Нет |
Description
The fluorescent lamps are used in outdoor and indoor luminaires for industrial, social and household facilities. The fluorescent lamps comply with requirements of Customs Union Technical Regulation TR TS 004/2011, IEC 60081, IEC 61195 and Russian Federation Government Decree No.602 of 20.07.2011.
Advantages
- Two types of protection against overloads and short circuit.
- Complete set of supplementary devices with the possibility of simple independent installation:
- – State contact KS47;
- – State contact KSV47;
- – Undervoltage trip RMM47;
- – Low-voltage release RN47.
- Improved arc suppression system: extended service life, increased resistance to short-circuit currents.
- Contact position indicator.
- Wide operating temperature range from –40 to +50° С.
- Simultaneous connection by FORK bar and flexible conductor is possible for power supply distribution via upper terminals, as well as connection by PIN bar.
- New ergonomic design of ON/OFF lever.
- Notched terminal clamps reduce the heat loss and increase mechanical stability of the connection.
Design Features
Specifications
| Number of connections | 14 |
| Nominal rated current, А | 100 |
| Material | Латунь |
| Width, мм | 88.5 |
| Suitable for 19 inch mounting | Нет |
| Thickness, мм | 12 |
| Insulated mounting | Да |
| Ambient temperature, °C | -40...50 |
| Mounting method | DIN-рейка |
| Number of connection places | 14 |
| Height, мм | 42.0 |
| Length, мм | 89 |
