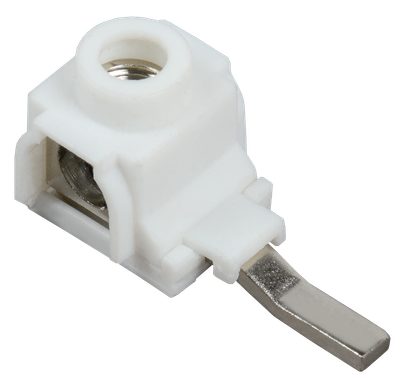

Input terminal for KVM modular equipment 4-25mm2 (side input) IEK
Product ID:
Main specifications
| Model | Трехфазная установка |
| Number of poles | 1 |
| Mounting method | Непосредственная установка |
| Connectable conductor cross section multi-wired, мм² | 4...25 |
| Colour | Белый |
Description
The FHB-Light series luminaire is designed for lighting warehouse, industrial, and retail premises with a ceiling height of 6 meters or more, as well as for lighting entrance areas. Increased light output is ensured. The body can be painted in any RAL color.
Advantages
- High load bearing.
- Versatility of application.
- A toothed notch at the edges of the profile ensures a reliable connection of the mounting elements with the help of a channel nut.
- The possibility of rapid modernization and development of the installation system.
- High speed and reliability of installation without welding.
- High corrosion resistance.
- Warranty period: 3 years.
Design Features
Specifications
| Model | Трехфазная установка |
| Number of poles | 1 |
| Mounting method | Непосредственная установка |
| Connectable conductor cross section multi-wired, мм² | 4...25 |
| Colour | Белый |
| Nominal rated voltage, В | 400 |
| Type of electrical connection 2 | Винтовое соединение |
| Operation temperature, °C | -40...50 |
| Number of clamp positions per pole | 1 |
| Nominal operating AC voltage Ue, В | 400 |
| Max. conductor cross section, мм² | 25 |
| Quantity in the kit, шт | 100 |
| Tightening torque Nm at conductor section, мм² | 2,5 |
| Width/grid dimension, мм | 13.5 |
| Attachment screw | М8 |
| PEN function possible | Нет |
| Material insulation body | Прочее |
| Connection position | Сбоку (поперечное) |
| Current-carrying part material | Медь |
| Material housing | EV000139 |
| Length, мм | 35 |
| Closing plate required | Нет |
| Flame accelerating | Нет |
| Connectable conductor cross section solid-core, мм² | 4...25 |
| Inflammability class of insulation material acc. with UL94 | V1 |
| Rated insulation voltage Ui, В | 415 |
| Nominal frequency, Гц | 50 |
| Minimum section, мм | 16.0 |
| Type of electrical connection 1 | Винтовое соединение |
| Nominal Attachment Capacity, мм² | 4...25 |
| Width, мм | 13,5 |
| Rated current In, А | 100 |
| Material clamp | EV000149 |
| Nominal DC operating voltage Ue, В | 220 |
| Height, мм | 19 |
| Ambient class | УХЛ3 |
