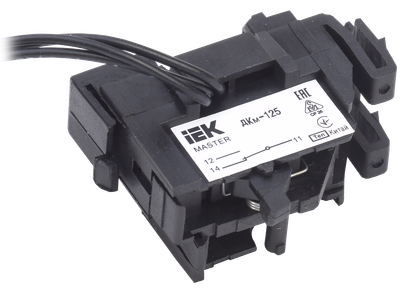

Auxiliary contact DKm-125 (DKm-32) MASTER IEK
Product ID:
Main specifications
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 2 |
| Compatibility | ВА88 серии MASTER |
| Mounting method | Крепление спереди |
Advantages
- 8 modes of operation of the garland.
- SAFE - made of non-combustible materials.
- Degree of protection IP44 not only for the garland itself, but also for the plug.
- Short circuit protection.
- Corresponds to GOST.
Design Features
Specifications
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 2 |
| Compatibility | ВА88 серии MASTER |
| Mounting method | Крепление спереди |
| Nominal rated voltage, В | AC: 230/400; DC: 220 |
| Type of electric connection | Винтовое соединение |
| Nominal current AC-15 with nominal operating voltage 230V, А | 0.50 |
| Height, мм | 37.5 |
| Rated insulation voltage Ui, В | 690 |
| Depth, мм | 48.3 |
| Conductor cross section, мм² | 0,2 |
| Rated operation current Ie at AC-15, 230 V, А | 0,5 |
| Nominal current AC-15 with nominal operating voltage 400V, А | 0.50 |
| Nominal current DC-13 with nominal operating voltage 230V, А | 0.15 |
| Width, мм | 25.7 |
| Conditional heat current of additional contact, А | 1.0 |
