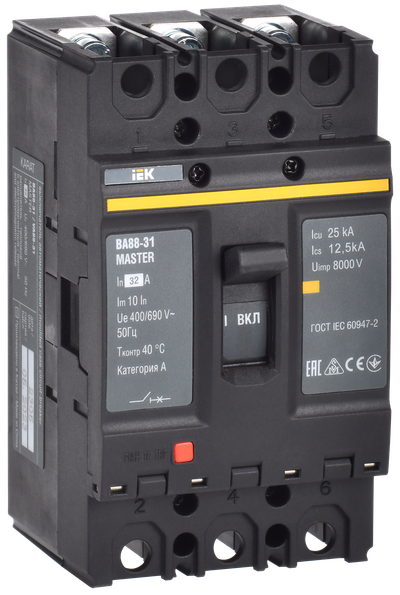

Circuit breaker BA88-31 3P 32A 25kA MASTER IEK
Product ID:
Main specifications
| Nominal rated current, А | 32 |
| Number of poles | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, кА | 25 |
| Version | Стационарное |
| Switch off technique | IEK_V0000011 |
Description
SchRn TITAN mounted distribution enclosures are designed for the assembly of electrical panels in apartments, cottages, garages and administrative buildings. The shields are manufactured in Russia, and their safety has been confirmed by tests. A classic, laconic design, a range of 12 to 216 modules, plastic plastrons, a removable metal frame with DIN rails - all this will make it easy to choose a solution for any technical problem.
Specifications
| Nominal rated current, А | 32 |
| Number of poles | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, кА | 25 |
| Version | Стационарное |
| Switch off technique | IEK_V0000011 |
| Nominal rated voltage, В | 690 |
| Product/component type | Выключатель автоматический в литом корпусе |
| Power loss, Вт | 75.0 |
| Ambient temperature, °C | -40...60 |
| Number of auxiliary contacts as change-over contact | 0 |
| Motor drive integrated | Нет |
| Connection type main current circuit | Винтовое соединение |
| Integrated earth fault protection | Нет |
| Mains frequency, Гц | 50...60 |
| Width, мм | 78.0 |
| Height, мм | 235.0 |
| Depth, мм | 87.0 |
| Electronic release | Нет |
| Power consumption, ВА | 150 |
| Rated surge voltage invariability, кВ | 8 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated voltage, В | 690 |
| Type of control element | Прочее |
| Adjustment range undelayed short-circuit release, А | 320 |
| Rated permanent current Iu, А | 32 |
| Setting range over-current release, А | 32 |
| Setpoint of electromagnetic disconnector Im, А | 320 |
| Number of auxiliary contacts as normally open contact | 0 |
| Motor drive optional | Нет |
| With under voltage release | Да |
| Weight, кг | 0.780 |
| Rated insulation voltage Ui, В | 690 |
| Nominal operating max breaking capacity, кА | 18,75 |
| Mechanical wear resistance without maintenanc, циклов | 8500 |
| Device construction | Прочее |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Degree of protection (IP) | IP30 |
