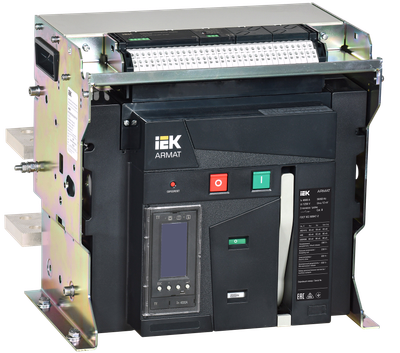

ARMAT Air circuit breaker fixed version 3P F 85kA 4000A TY release with accessories 220V: motor drive shunt trip trip coil IEK
New
Product ID:
Main specifications
| Nominal rated current, А | 4000 |
| Number of poles | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, кА | 85 |
| Version | Стационарное |
| Switch off technique | Электронный |
Description
The connecting section is designed to connect the busbar to a dry transformer
Specifications
| Nominal rated current, А | 4000 |
| Number of poles | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, кА | 85 |
| Version | Стационарное |
| Switch off technique | Электронный |
| Product/component type | Выключатель автоматический воздушный |
| Power loss, Вт | 640.0 |
| Number of auxiliary contacts as change-over contact | 6 |
| Motor drive integrated | Да |
| Connection type main current circuit | Болтовое соединение |
| Mains frequency, Гц | 50 |
| Width, мм | 426.0 |
| Height, мм | 394.0 |
| Depth, мм | 294.0 |
| Type of control element | Прочее |
| Position of connection for main current circuit | Подключение сзади |
| Electronic release | Да |
| Rated voltage, В | 690...690 |
| Adjustment range undelayed short-circuit release, А | 4000...65000 |
| Nominal operating max breaking capacity, кА | 85 |
| Device construction | Прочее |
| Altitude above sea level, м | < 2000 |
| Rated insulation voltage Ui, В | 1250 |
| Operation mode | Продолжительный |
| Mechanical wear resistance without maintenanc, циклов | 15000 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Motor drive optional | Нет |
| Setting range over-current release, А | 1600...4000 |
| Rated surge voltage invariability, кВ | 12 |
| With under voltage release | Да |
| Suitable for DIN rail (top hat rail) mounting | Нет |
| Number of auxiliary contacts as normally open contact | 0 |
| Nominal short-term holding during 1 s of Icw current, кА | 85 |
| Degree of protection (IP) | IP30 |
| Rated permanent current Iu, А | 4000 |
| Additional equipment attached at delivery | Независимый расцепитель (для силовых автоматов) |
