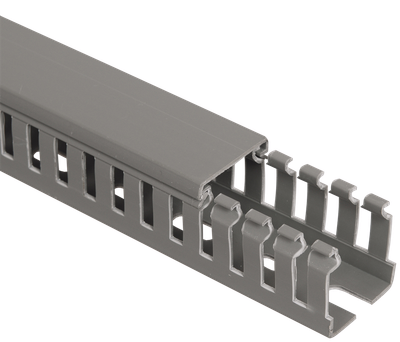

Slotted Cable duct 25x25 "IMPACT"
Product ID:
Main specifications
| Width, мм | 25 |
| Height, мм | 25 |
| Slit width, мм | 4 |
| Distance of slots, мм | 6.0 |
| Type of fastening | Перфорация на основании |
Description
PKV(N)tpbe-1 and PKVtpbe-1 heat-shrink sleeves are designed for termination of aluminum or copper conductors of cables with plastic, rubber and polyethylene insulation with armor or shield for voltages up to 1 kV: AVBbShv-1, VBbShv-1, AVVB-1, AVVBG-1, VVB-1, VVBG-1, APvBbShv-1, PvBbShv-1, VVGE, AVVGE, PvVGE, APvVGE, their equivalents and versions. The product's range is developed for 1-, 2-, 3-, 4- and 5-core cables.
Advantages
- Two types of protection against overloads and short circuit.
- Complete set of supplementary devices with the possibility of simple independent installation:
- – State contact KS47;
- – State contact KSV47;
- – Undervoltage trip RMM47;
- – Low-voltage release RN47.
- Improved arc suppression system: extended service life, increased resistance to short-circuit currents.
- Contact position indicator.
- Wide operating temperature range from –40 to +50° С.
- Simultaneous connection by FORK bar and flexible conductor is possible for power supply distribution via upper terminals, as well as connection by PIN bar.
- New ergonomic design of ON/OFF lever.
- Notched terminal clamps reduce the heat loss and increase mechanical stability of the connection.
Design Features
Specifications
| Width, мм | 25 |
| Height, мм | 25 |
| Slit width, мм | 4 |
| Distance of slots, мм | 6.0 |
| Type of fastening | Перфорация на основании |
| Length, мм | 2000 |
| With cover | Да |
| Self-extinguishing | Да |
| Material | EV000163 |
| Flexible | Да |
| Halogen free | Нет |
| Current leak stable | Нет |
| Type of side wall | С щелевой перфорацией/прорезами |
| Mounting temperature, °C | -15...+60 |
| Colour | Серый камень/гранит |
| Useful cross section, мм² | 492 |
