Esca 3 Vertical internal turn 45-grade 50x200-1.2 IEK

Паспорта и РЭ

Срок службы, Лет

Esca 5 Vertical internal turn 45-grade 50x200-1.2 IEK

Profile 150 × 65 mm is a cable-channel cable 2 m long without a flexible lid. Designed for laying power and low -current wires and cables, communication lines, telecommunication cables and/or to accommodate electrical products of the standard 45 × 45.
For full configuration, it will be additionally required to purchase a lid (art. 010521). Color: White.

ESCA 7 Turn vertical inner 45deg 50x200-1.5 HDZ IEK

It is used for additional protection of the cable in the tray and preventing the sagging of low -current cables. It is made of cold -rolled steel with the subsequent application of a protective zinc coating by immersion in the melt according to GOST 9.307

ESCA 7 Turn vertical inner 45deg 50x200-2.0 IEK

The L-Fusion Retail LED lamp is intended for the general internal lighting of trading halls, logistics centers, shops, and storage facilities.

ESCA 7 Turn vertical inner 45deg 50x200-2.0 HDZ IEK

The button is a single -valve button - Valena - 10A 250V, shameless clamps. Designed for installation in electrical networks of residential and public buildings and is used for pulse control of electrical calls, relay, etc.

ESCA 7 Turn vertical inner 45deg 50x200-1.5 IEK

Cable tray width, мм	200
Height, мм	50
Colour	Светло-серый
Ambient temperature, °C	-50...40
Material	Сталь

Cable tray width, мм	200
Height, мм	50
Colour	Светло-серый
Ambient temperature, °C	-50...40
Material	Сталь
Zinc coating thickness, мкм	10
Cable tray height, мм	50
Width, мм	200
Width branch, мм	200
Degree of protection (IP)	IP00
Corrosion Resistance Class	2
Weight, кг	0,83
Side wall perforation	Нет
Ambient class	У2, ХЛ2, УХЛ2, ОМ2
Surface protection	Оцинковка по методу Сендзимира
Change of direction	Вертикально восходящий (внутренний)
RAL-number	7047
Stainless steel, pickled	Нет
Mounting perforation in bottom	Нет
Deflection (angle)	45
Length, мм	234
Model	Интегрированный разъем
Metal thickness, мм	1.5
Wide span model	Нет
Mounting temperature, °C	-50...40
Material quality	Прочее
Suitable for circuit integrity	Нет

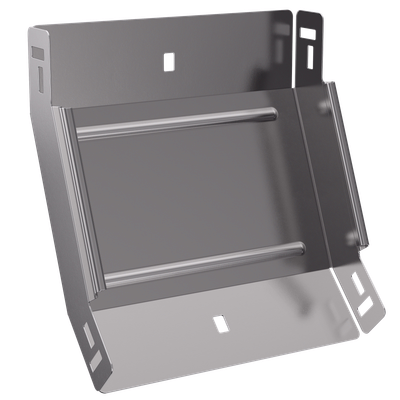

ESCA 7 Turn vertical inner 45deg 50x200-1.5 IEK
