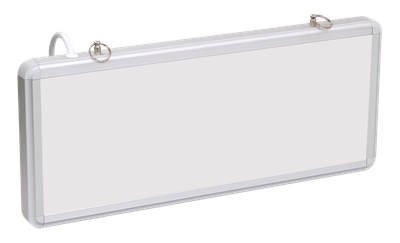

SSA1005 Emergency light Luminaire LED, 1,5h, 3W, single side, without label, IEK
- Video
Product ID:
Main specifications
| Degree of protection (IP) | IP20 |
| Wiring system | EV009683 |
| Lamp power, Вт | 3.0 |
| Luminous flux, лм | 40 |
| Nominal service time, ч | 1.5 |
Description
Using NVI fork-type tips is preferred when it is necessary to introduce operative changes in electrical connections as in this case there is no need for a total dismounting of tie-down. Weakening the screw fixation is enough. Correspond to EN 60998-1, EN 60998-2-2.
Design Features
Specifications
| Degree of protection (IP) | IP20 |
| Wiring system | EV009683 |
| Lamp power, Вт | 3.0 |
| Luminous flux, лм | 40 |
| Nominal service time, ч | 1.5 |
| Battery type | Аккумулятор NiCd (никель-кадмиевый) |
| Battery capacity, А ч | 0.4 |
| Recognition distance, м | 24 |
| Length, мм | 363 |
| Width, мм | 152 |
| Height/depth, мм | 23 |
| Protection class | I |
| Lamp holder | Нет |
| Ambient class | УХЛ3.1 |
| Material housing | Алюминий |
| KSS type | Д |
| Power supply system | Автономный (индивидуальный аккумулятор) |
| Rated luminous flux acc. IEC 62722-2-1, лм | 40 |
| Starting current, А | 0,007 |
| With lamp | Да |
| Dimensional brightness, кд/м² | 241 |
| Type of indicator | Только односторонний |
| Ambient temperature, °C | -10...40 |
| Material cover | Стекло прозрачное (светопрониц.) |
| Nominal battery voltage, В | 1.2 |
| Mounting method | Крепление к стене, подвесной |
| Power consumption, Вт | 3.0 |
| Max battery charge time, ч | 24 |
| Type of gear | Электронный балласт |
| Colour housing | Серый |
| Number of LEDs | 6 |
| Nominal fuse current, А | 1 |
| Suitable for number of lamps | 8 |
| Luminous flux in emergency mode, лм | 40 |
| Duration of starting currents, мкс | 35 |
| Nominal voltage, В | 230 |
| Weight, кг | 0.56 |
| Lamptype | Светодиод. источник света (LED) |
| Light distribution class | П |
| Monitoring equipment | Кнопка ТЕСТ |
| Type of luminaire | Односторонний (-яя) |
| Frequency | 50 Гц |
| Labelling type | Прочее |
| Colour rendering index | EV003583 |
| Nominal operation time, ч | 1.5 |
| Max. system power, Вт | 3.0 |
