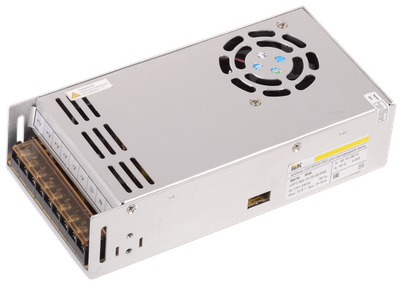

LED driver IPSN-PRO 360W 12V block - terminals IP20 IEK
Артикул:
Основные характеристики
| Rated voltage, В | 230 |
| Secondary voltage, В | 12 |
| Output power, Вт | 360 |
| Degree of protection (IP) | IP20 |
| Type of output voltage | Постоянный (DC) |
Описание
The direct current link choke is necessary to reduce the output current ripple and reduce the current harmonic of consumed from the network by frequency converters. In addition, the presence of a direct current link choke allows to increase the resource of direct current link power capacitors, and, consequently, the resource of the converter as a whole. Chokes ONI differ in the stability of the respective characteristics through the use in the production of high-quality materials, strict compliance with the intricacies of the manufacturing process in the production and stringent final inspection of finished products.
Особенности конструкции
Технические характеристики
| Rated voltage, В | 230 |
| Secondary voltage, В | 12 |
| Output power, Вт | 360 |
| Degree of protection (IP) | IP20 |
| Type of output voltage | Постоянный (DC) |
| Output current, А | 30 |
| Number of LEDs | - |
| Type of dimming | Недиммируемый |
| No dim function | Да |
| Suitable for DC | Нет |
| Suitable for constant voltage | Нет |
| Housing | Металлический корпус |
| Nominal rated frequency, Гц | 50 |
| Over voltage protection | Да |
| Overload protector | Да |
| Input voltage power supply, В | 170...240 |
| Type of voltage (input voltage) | Переменный (AC) |
| EFFICIENCY, процентов | ≥ 75 |
| Short-circuit protected | Да |
| Number of channels | 3 |
| Length, мм | 198 |
| Width, мм | 99 |
| Height, мм | 50.0 |
| Weight, кг | 0.70 |
| Ambient temperature, °C | -45...80 |
| Suitable for outdoor use | Нет |
| Model | Статический |
| Product/component type | Светодиодный драйвер |
Документация
Паспорта и РЭ
Комплектация
Драйвер LED - 1 шт.
Паспорт - 1 экз.
