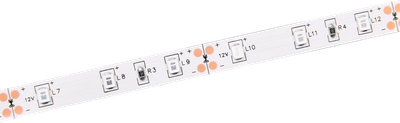

LED sterip 5m LSR-2835B60-4,8-IP20-12V IEK

Product ID:

Main specifications

Model	Лента/полоска
Lamp type	Светодиод. источник света (LED)
Width, мм	8
Colour	Синий/голубой
Lamptype	Светодиодная незаменяемая

Emergency luminaire, fully compliant with GOST 60598-2-22-2012.
Reed switch device instead of the TEST button.
Operating time in emergency mode 3 hours.
High efficiency up to 130 lm/W.
Embedded driver developed by LEDEL.
Wide operating voltage range from 170 to 265 V.
Power factor over 0.95.
The ripple factor is below 2%.
Connection to the network is carried out with the help of a wire brought out of the case.
Universal mounting (surface or built-in).
Individual packing.

Model	Лента/полоска
Lamp type	Светодиод. источник света (LED)
Width, мм	8
Colour	Синий/голубой
Lamptype	Светодиодная незаменяемая
Height/depth, мм	-
Luminous flux per meter, лм	360
Lamp power per meter, Вт	4.8
Length, мм	5000
Length of particular segments, мм	50
Self-adhesive	Да
Type of gear	Светодиод. драйвер с управлением по току
Degree of protection (IP)	IP20
With connection set	Нет
Number of lamps per meter	60
Nominal rated voltage, В	12.0
Connection type	Присоединительные провода
Voltage type	Постоянный (DC)
Colour of light	Синий/голубой
Ambient temperature, °C	-10...45
Color Spectrum, нм	480
Lamp voltage, В	12
Lamp voltage, В	12
