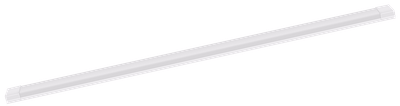

LED Luminaire DBO 4004 36W 6500k IP20 1200mm opal diffuser IEK
Product ID:
Main specifications
| Type of luminaire | Светильник с плафоном/рассеивателем |
| Max. system power, Вт | 36 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3600 |
| Degree of protection (IP) | IP20 |
| Material housing | Сталь |
Description
T-shaped horizontal outlet is designed for organizing a T-shaped or X-shaped outlet of a cable route in the horizontal plane. The accessory is connected to the tray using a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory must be ordered separately. The accessory is made of galvanized steel using the Sendzimir method (protective layer of zinc of at least 5-10 microns).
Advantages
- High-quality and reliable material. Can be used in chemically active soils. With the help of couplings, the rods are assembled into a single ground electrode of the required length. An expanded range of ground rods will satisfy any market request. All main diameters and materials of execution. A wide range of accessories for the product is always in stock.
Design Features
Specifications
| Type of luminaire | Светильник с плафоном/рассеивателем |
| Max. system power, Вт | 36 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3600 |
| Degree of protection (IP) | IP20 |
| Material housing | Сталь |
| Operating voltage range, В | 198...253 |
| Colour housing | Белый |
| Power factor | 0,9 |
| Nominal frequency, Гц | 50 |
| Suitable for emergency lighting | Нет |
| No dim function | Да |
| Colour rendering index | 70-79 (класс 2A) |
| Nominal voltage, В | 230 |
| Luminous flux pulsation factor, процентов | 5 |
| Protection class | I |
| Colour temperature, К | 6500 |
| Operating temperature range, °C | -10...40 |
| Special application | Прочее |
| Luminaire energy efficiency, лм на Вт | 106.0 |
| Height/depth, мм | 24.0 |
| Voltage type | Переменный (AC) |
| Type of gear | Светодиодный драйвер |
| Fit for monitor workplace | Нет |
| Power factor | 0,9 |
| Suitable for light line configuration | Нет |
| Suitable for surface mounting | Да |
| Suitable for lamp power, Вт | - |
| Outer diameter, мм | - |
| Material cover | Пластик опаловый |
| Width, мм | 62.0 |
| With movement sensor | Нет |
| Suitable for suspended mounting | Нет |
| Length, мм | 1200 |
| Light colour category | Холодный дневной >5300 К |
| Suitable for ceiling mounting | Да |
| Lamp power, Вт | 36 |
| Suitable for wall mounting | Да |
| Lamp holder | Прочее |
| Control unit included | Нет |
| Mounting height/depth (embedded), мм | - |
| Lamptype | Светодиодная незаменяемая |
| Suitable for built-in mounting | Нет |
| Suitable for number of lamps | - |
