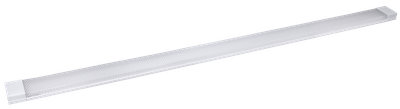

LED Luminaire DBO 4012 36W 4000k IP20 1200mm prizm diffuser IEK
Product ID:
Main specifications
| Type of luminaire | Светильник с плафоном/рассеивателем |
| Max. system power, Вт | 36 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3600 |
| Degree of protection (IP) | IP20 |
| Material housing | Сталь |
Description
T-shaped horizontal outlet is designed for organizing a T-shaped or X-shaped outlet of a cable route in the horizontal plane. The accessory is connected to the tray using a telescopic connector. Suitable for all types of ESCA series sheet trays. The cover for the accessory must be ordered separately. The accessory is made of galvanized steel using the Sendzimir method (protective layer of zinc of at least 5-10 microns).
Advantages
- Extended range of earth rods to meet any market demand.
- All main diameters and materials.
- A large range of accessories for the product is always in stock.
Design Features
Specifications
| Type of luminaire | Светильник с плафоном/рассеивателем |
| Max. system power, Вт | 36 |
| Rated luminous flux acc. IEC 62722-2-1, лм | 3600 |
| Degree of protection (IP) | IP20 |
| Material housing | Сталь |
| Operating voltage range, В | 198...253 |
| Colour housing | Белый |
| Power factor | 0,9 |
| Lamp power, Вт | 36 |
| Power factor | 0,9 |
| Suitable for surface mounting | Да |
| Outer diameter, мм | - |
| Suitable for ceiling mounting | Да |
| No dim function | Да |
| Operating temperature range, °C | -10...40 |
| Voltage type | Переменный (AC) |
| Nominal voltage, В | 230 |
| Special application | Прочее |
| Suitable for emergency lighting | Нет |
| Suitable for suspended mounting | Нет |
| Control unit included | Нет |
| Suitable for wall mounting | Да |
| Type of gear | Светодиодный драйвер |
| With movement sensor | Нет |
| Suitable for light line configuration | Нет |
| Colour rendering index | 70-79 (класс 2A) |
| Suitable for number of lamps | - |
| Suitable for built-in mounting | Нет |
| Width, мм | 62.0 |
| Mounting height/depth (embedded), мм | - |
| Light colour category | Нейтральный (холодно-белый) 3300-5300 К |
| Luminaire energy efficiency, лм на Вт | 110.0 |
| Lamptype | Светодиодная незаменяемая |
| Luminous flux pulsation factor, процентов | 5 |
| Length, мм | 1200 |
| Height/depth, мм | 24.0 |
| Nominal frequency, Гц | 50 |
| Suitable for lamp power, Вт | - |
| Lamp holder | Прочее |
| Protection class | I |
| Colour temperature, К | 4000 |
| Material cover | Пластик структурированный |
| Fit for monitor workplace | Нет |
