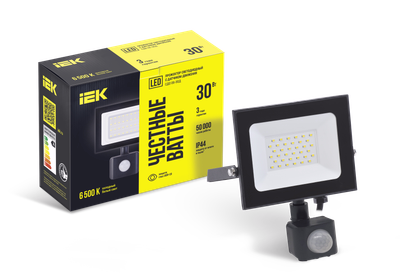

LED floodlight SDO 06-30D black motion sensor IP54 6500K IEK
- Видео
Артикул:
Основные характеристики
| Colour rendering index | 70-79 (класс 2A) |
| Degree of protection (IP) | IP54 |
| Radiation angle | Широкий световой пучок |
| Type of luminous intensity curve | Д |
| KSS type | Д |
Описание
For interconnecting trays and accessories as well as attachment to bearing surfaces.
Особенности конструкции
Технические характеристики
| Colour rendering index | 70-79 (класс 2A) |
| Degree of protection (IP) | IP54 |
| Radiation angle | Широкий световой пучок |
| Type of luminous intensity curve | Д |
| KSS type | Д |
| Radiation angle, ° | 120 |
| Colour temperature, К | 6500 |
| Suitable for lamp power, Вт | 0 |
| Lamp efficacy, лм на Вт | 100 |
| Max. system power, Вт | 30 |
| Lamp power, Вт | 30 |
| Irreplaceable light source | SMD светодиоды |
| Lamp holder | Прочее |
| Lamptype | Светодиодная незаменяемая |
| Light colour category, К | Холодный дневной >5300 К |
| Dimensional brightness, кд/м² | 34551 |
| Colour controllable (RGB) | Нет |
| Voltage type | Переменный (AC) |
| Nominal voltage, В | 230 |
| Frequency | 50 Гц |
| Protection class | I |
| Starting current, А | 0,1 |
| Duration of starting currents, мкс | 20 |
| Operating voltage range, В | 200...240 |
| Dimmable | Нет |
| With lamp | Да |
| Type of gear | Светодиодный драйвер |
| Control unit included | Да |
| Length, мм | 132.0 |
| Width, мм | 162.0 |
| Height/depth, мм | 54.0 |
| Outer diameter, мм | 0 |
| Built-in diameter, мм | 0 |
| Built-in width, мм | 0 |
| Built-in length, мм | 0 |
| Built-in depth, мм | 0 |
| Weight, кг | 0,27 |
| Colour housing | Черный |
| Material housing | Алюминий |
| Reflector perforated | Нет |
| Adjustability | Поворотный |
| Colour cover | Нет |
| Suitable for through-wiring | Нет |
| Material cover | Стекло прозрачное (светопрониц.) |
| Reflector | Белый |
| Mounting method | На поверхность (накладной) |
| Suitable for built-in mounting | Нет |
| Suitable for pedestal/floor mounting | Да |
| Suitable for clamp-mounting | Нет |
| Suitable for traverse mounting | Да |
| Suitable for ceiling mounting | Да |
| Suitable for wall mounting | Да |
| Suitable for light-track mounting | Нет |
| Suitable for suspended mounting | Нет |
| Suitable for surface mounting | Да |
| With mounting bracket | Да |
| Ball-proof | Нет |
| Special application | Нет |
| Min. distance to the lit object, м | 1 |
| Model | Прочее |
| Suitable for lighting accessories | Нет |
| Average nominal lifespan, ч | 20000 |
| Ignitor | Не требуется |
| Circuit | Прочее |
| Light distribution class | П |
| Type of sensor | Инфракрасный |
| With movement sensor | Да |
| Electrical connection with connector system | Нет |
| Sensor Range, м | 6 |
| Sensor illumination level, лк | 10...2000 |
| Suitable for number of lamps | 1 |
| Product/component type | Прожектор |
| Light sharing | Симметричный (-ое) |
| Consumed power of switched on sensor, Вт | ≤ 0,5 |
| Power factor | ≥ 0,9 |
| Luminous flux, лм | 3000 |
