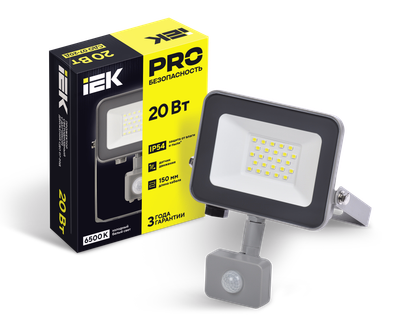

LED floodlight SDO 07-20D gray with Motion Sensor IP44 IEK
- Видео
Артикул:
Основные характеристики
| Colour rendering index | 70-79 (класс 2A) |
| Degree of protection (IP) | IP54 |
| KSS type | Д |
| Radiation angle | Широкий световой пучок |
| Radiation angle, ° | 120 |
Описание
Cable connecting couplers of internal and external installations of the mark Stt(tp)-10 are designed to connect 3-wire power cables with paper insulation with armor and without armor for voltage up to 10 kV AC frequency 50Hz. According to its characteristics, the couplers meet the requirements of GOST 13781.0.
The couplers are designed for mounting on cables, type AAG-10, AAShV-10, AAVl-10, AAPl-10, ASG-10, ASVlShV-10, SG-10, SShV-10, SVShV-10, SV-10, SVG-10, their analogues and modifications.
Особенности конструкции
Технические характеристики
| Colour rendering index | 70-79 (класс 2A) |
| Degree of protection (IP) | IP54 |
| KSS type | Д |
| Radiation angle | Широкий световой пучок |
| Radiation angle, ° | 120 |
| Colour temperature, К | 6500 |
| Max. system power, Вт | 20 |
| Suitable for lamp power, Вт | 0 |
| Lamp efficacy, лм на Вт | 90 |
| Lamp power, Вт | 20 |
| Lamp holder | Прочее |
| Lamptype | Светодиодная незаменяемая |
| Irreplaceable light source | SMD светодиоды |
| Light colour category, К | Холодный дневной >5300 К |
| Dimensional brightness, кд/м² | 46400 |
| Colour controllable (RGB) | Нет |
| Voltage type | Переменный (AC) |
| Nominal voltage, В | 230 |
| Frequency | 50/60 Гц |
| Protection class | I |
| Starting current, А | 0,078 |
| Duration of starting currents, мкс | 20 |
| Dimmable | Нет |
| Operating voltage range, В | 200...240 |
| Control unit included | Да |
| With lamp | Да |
| Type of gear | ЭПРА |
| Length, мм | 132.0 |
| Width, мм | 169.0 |
| Height/depth, мм | 55.0 |
| Outer diameter, мм | 0 |
| Built-in length, мм | 0 |
| Built-in depth, мм | 0 |
| Built-in width, мм | 0 |
| Built-in diameter, мм | 0 |
| Weight, кг | 0,267 |
| Colour housing | Серый |
| Material housing | Алюминий |
| Mounting method | На поверхность (накладной) |
| Suitable for through-wiring | Нет |
| Material cover | Пластик прозрачный (светопрониц.) |
| Adjustability | Поворотный |
| Colour cover | Нет |
| Reflector perforated | Нет |
| Reflector | Белый |
| Suitable for built-in mounting | Нет |
| Suitable for clamp-mounting | Нет |
| Suitable for suspended mounting | Нет |
| Suitable for light-track mounting | Нет |
| Suitable for pedestal/floor mounting | Да |
| Suitable for wall mounting | Да |
| Suitable for traverse mounting | Да |
| Suitable for ceiling mounting | Да |
| Suitable for surface mounting | Да |
| Impact strength | Нет |
| Type of surface | Матовый (-ая) |
| With mounting bracket | Да |
| Special application | Нет |
| Model | Прочее |
| Average nominal lifespan, ч | 30000 |
| Product/component type | Прожектор |
| Type of sensor | Инфракрасный |
| Number of LEDs | 25 |
| Suitable for number of lamps | 1 |
| Light sharing | Симметричный (-ое) |
| Ignitor | Не требуется |
| With movement sensor | Да |
| Sensor Range, м | 10 |
| Consumed power of switched on sensor, Вт | 0.50 |
| Viewing angle, ° | 120 |
| Electrical connection with connector system | Нет |
| Sensor illumination level, лк | 3...2000 |
| Suitable for lighting accessories | Нет |
| Light distribution class | П |
| Luminous flux, лм | 1800 |
| Power factor | 0,6 |
Документация
Комплектация
Прожектор - 1 шт.
Этикетка - 1 экз.
