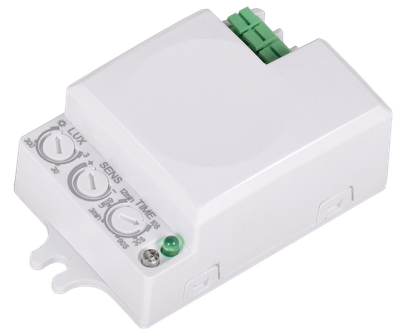

Motion Sensor DD-mV 401 white, 500W, 360 degree,8m,IP20,IEK

Main specifications
Colour | Белый |
Model | Датчик движения |
Max. switching power, Вт | 500 |
Mounting method | Поверхностн. монтажа (открыт. установка) |
Max loading power for lamps heat, Вт | 1200 |
Description
Non-perforated rolling trays are part of the metal cable support systems of the IEK group of companies. Designed for laying and protection of power and low-voltage cables. When used in conjunction with a cover, it provides maximum cable protection against external influences, dust and moisture. Depending on the version, the trays can be used both inside public, industrial buildings, structures and retail facilities, as well as outdoors under a canopy, in the open air, as well as in rooms with high humidity. Rolled non-perforated trays IEK are made of cold-rolled steel coils, galvanized by a conveyor method or by dipping finished products in a zinc melt. The IEK rolling tray system consists of straight elements and accessories designed to change the direction of the route, as well as covers and connecting elements of various sizes. For safety requirements, the product complies with IEC 61537.
Design Features
Specifications
Colour | Белый |
Model | Датчик движения |
Max. switching power, Вт | 500 |
Mounting method | Поверхностн. монтажа (открыт. установка) |
Max loading power for lamps heat, Вт | 1200 |
Degree of protection (IP) | IP20 |
Optimum mounting height, м | 3.5 |
Max. transmission range sideways, м | 8 |
Response value luminosity, лк | 3...2000 |
Detection angle vertical, ° | 180 |
Detection angle horizontal, ° | 360 |
Forced switch off | Нет |
Staircase monitoring | Нет |
Electric shock protection class | II |
With DALI interface | Нет |
Sensor Range, м | 1...8 |
Voltage type | Переменный (AC) |
Teach-function for response value luminosity | Нет |
Transparent | Нет |
Sensitivity to infrared radiations of an object | Нет |
Constant light control | Да |
Width, мм | 39.4 |
Bridging switch | Нет |
Creep-under protection | Нет |
Sensor type | Пассивный инфракрасный (PIR) |
Dim function with dimmer basic element | Нет |
Frequency, Гц | 50 |
Height, мм | 67.0 |
Depth, мм | 25.0 |
Nominal voltage, В | 230 |
Section of the connected conductors, мм² | 0,75...1,5 |
Speed of detection of the movement, м в с | 0,6...1,5 |
Carrier frequency, ГГц | 5.8 |
Max. duty cycle, мин | 12±1 |
Max power in ON state, Вт | 0.90 |
Max loading power for luminescent the besstartnykh of lamps, ВА | 300 |
Max. transmission range frontally, м | 8 |
With signal unit | Нет |
Adjustment of range | Да |
Suitable for wireless transmission | Нет |
Remote operation | Нет |
Ambient class | IEK_V0000009 |
Type of surface | Не применимо |
Response value luminosity adjustable | Да |
Material | Пластик |
Networkable | Нет |
With remote control | Нет |
Animal zone | Нет |
Surface protection | Необработанная |
Response value sensitivity adjustable | Да |
Material quality | Прочее |
Alarm function | Нет |
HVAC-control | Нет |
Substation input | Нет |
Min. running cycle, сек | 10±3 |
Temperature, °C | -25...70 |
Documents
Set contains
Датчик движения - 1 шт.
Инструкция по монтажу. Паспорт - 1 экз.
Полиэтиленовый пакет - 1 шт.
Руководство по эксплуатации. Паспорт - 1 экз.
