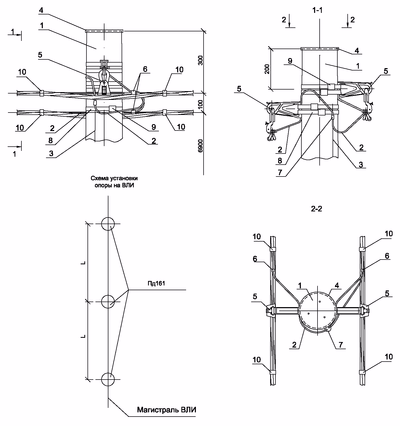

Support Pd161 wooden intermediate double chain IEK
Product ID:
Main specifications
| Solution Type | Деревянная |
| Solution Name | Опоры |
| Support group | Промежуточная |
| Support type | Прямая |
| Number of circuits | Двухцепная |
Advantages
- High efficiency up to 130lm/W.
- Product range from 20 to 100W.
- No pulsation, no more than 5%.
- Wide operating temperature range from -60 to +40°C.
- Wide input voltage range 220-250V.
- High degree of protection against dust and moisture - IP66.
- Option for selecting secondary optics (select KSS, G30, GSP105, G150, GSP-II, D, K15).
- The line includes models with rotary, overhead, and hanging mounts.
- Easy installation.
- New generation OSRAM LEDs provide soft and uniform light on the surface.
Specifications
| Solution Type | Деревянная |
| Solution Name | Опоры |
| Support group | Промежуточная |
| Support type | Прямая |
| Number of circuits | Двухцепная |
| Support grade | Пд161 |
Set contains
| Product ID | Name | Qty |
|---|---|---|
| UKA-31-D16-D95 | Комплект промежуточной подвески КОПМ 1500 (ES 1500, SO 260) IEK | 2 |
| UZA-L50 | Лента бандажная ЛМ-50 (F 2007, COT37, F207, 50 метров в упаковке) IEK | 9 |
| UZSG-16-S10-120-S25-95 | Зажим ЗСГП 35-120/25-95 (CDR/CN 1S 95 UK) IEK | 2 |
| UZA-50-100 | Скрепа СГ-20 100шт/упак (A200, NC 20) IEK | 9 |
| UZP-11-S06-S095 | Зажим плашечный ЗП 6-95/6-95 (SL37.27) IEK | 1 |
| UHH21-D9-260-100 | Хомут для СИП ХС-260 (100шт/упак) IEK | 4 |
| UHH21-D6-180-100 | Хомут для СИП ХС-180 (100шт/упак) IEK | 4 |
