14.06.2024

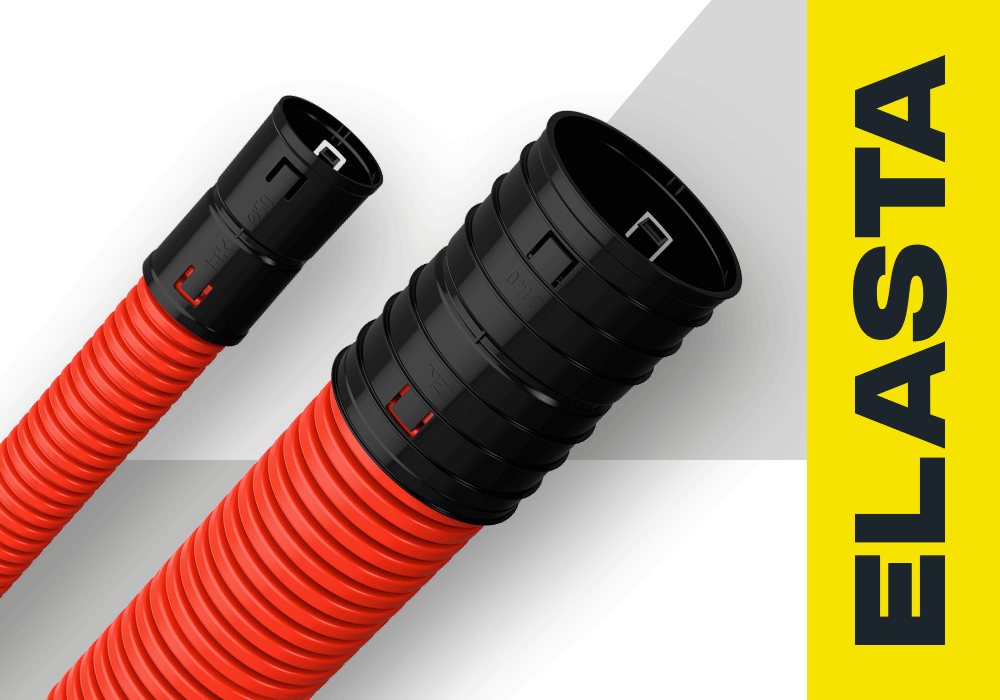

IEK 5.7 m Rigid Double-wall Corrugated Pipes – increased ring stiffness
IEK rigid double-walled corrugated pipes are designed for protection of insulated wires and cables from mechanical damage and aggressive environmental impact under conditions of high load on the cable line.
IEK offers rigid double-walled corrugated pipes length 5.7 meters — specifically for logistically hard-to-reach regions, for delivery in containers of smaller capacity.
Advantages of 5.7 m IEK rigid double-walled corrugated pipes
- High ring stiffness.
- Wide operating temperature range.
- Smooth inner wall facilitates cable pulling.
- Coupling for connection included.
Technical specifications of 5.7 m IEK rigid double-walled corrugated pipes
- Pipe diameter: 110, 125, 140, 160, 200 mm.
- Operating temperature: from -55 to +60 °C.
- Material: HDPE.
- Concealed mounting: underground or in concrete.
- Service life: 50 years.
