20.01.2025

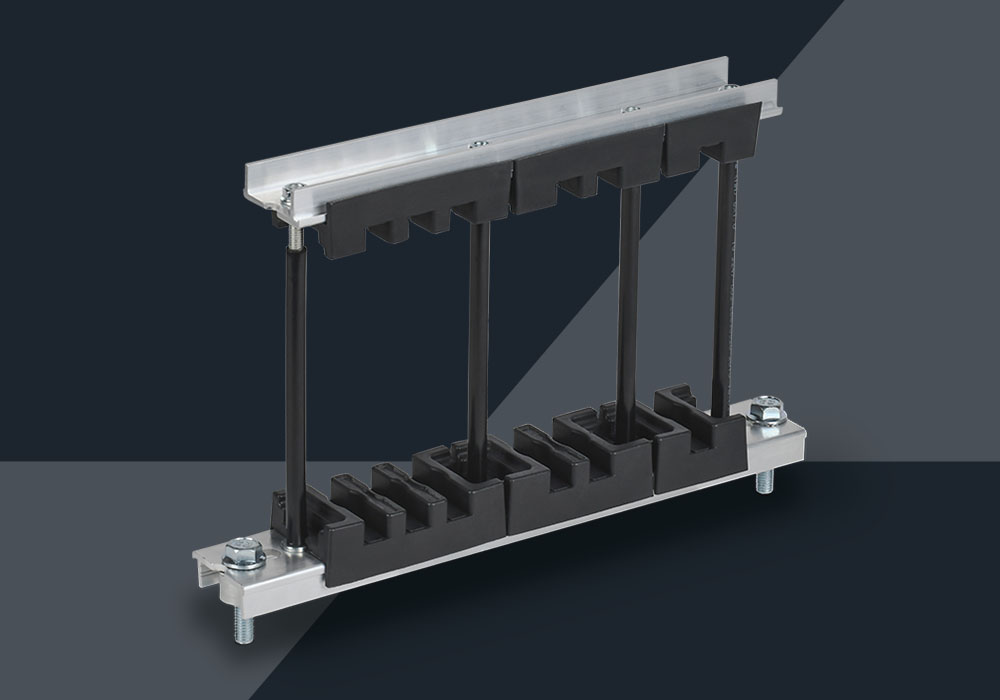

IEK Set of Busbar Supports — convenient installation of current-carrying busbars inside a power cabinet
IEK modular busbar holder system is designed for mounting current-carrying busbars inside a cabinet. Seven types of busbar holders allow convenient and easy mounting of a system of any complexity. The system is designed for currents up to 4000 A and complies with GOST R
Advantages of IEK busbar holders
- 7 types of holders — simple mounting of a system of any complexity.
- Made from glass-filled polyamide: non-flammable and does not contain phenolic resins.
- Insulator with convenient snap-on latches.
- Possibility to nest profiles into each other when mounting busbars of large cross-section for currents 2500 A.
- Adjustable phase-to-phase distance.
Technical specifications of IEK busbar holders
- Profile perforation pitch: 12.5 mm hole diameter: 8 mm.
- Profile width: 40 mm.
- For busbars thickness 5 and 10 mm: from 1 to 4 busbars per phase.
- Busbar width: from 30 to 140 mm.
