31.01.2025

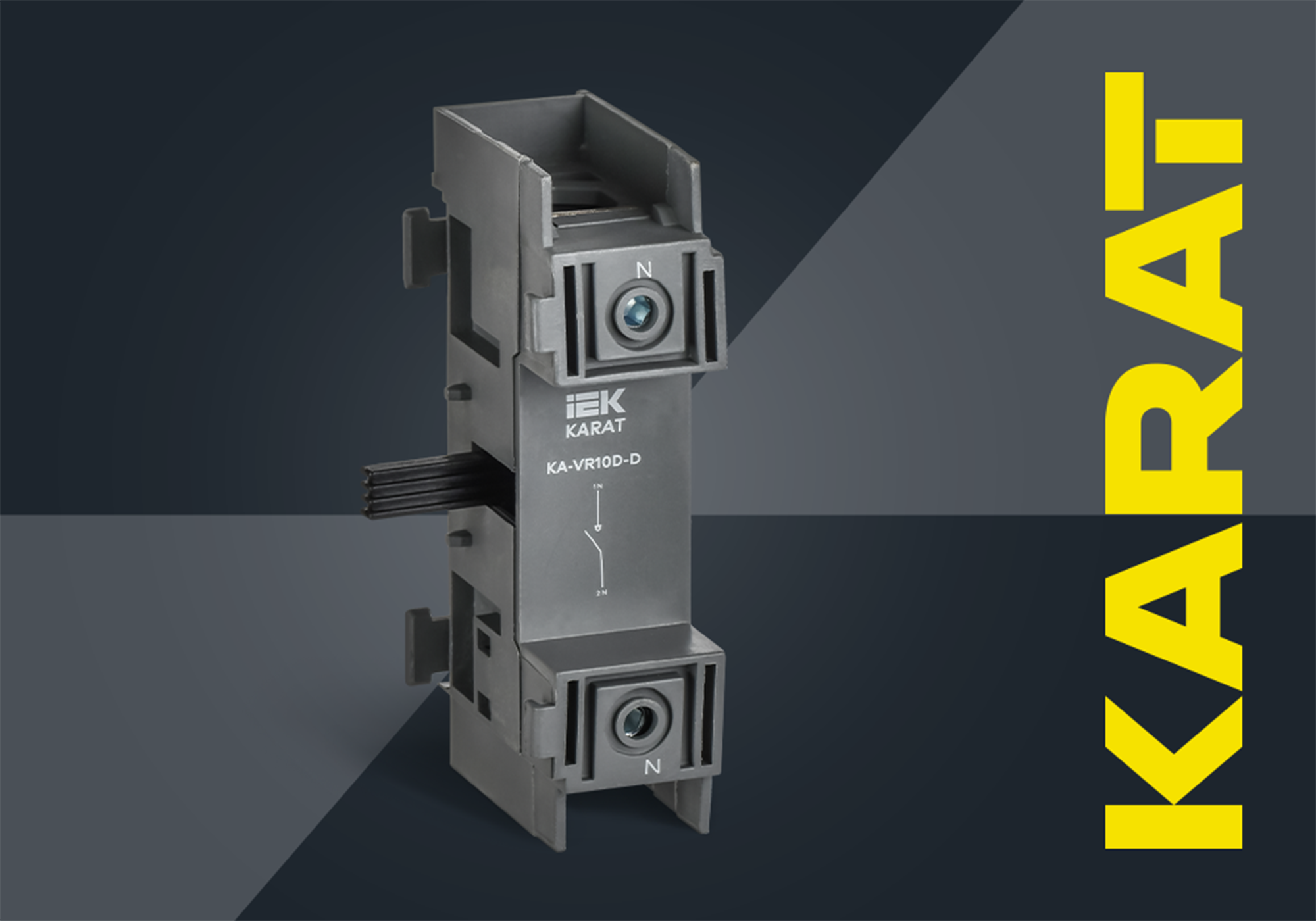

KARAT IEK Additional Pole for VPM — more possibilities for complex electrical systems
Additional pole for KARAT IEK VRM load break switches allows significantly expanding the functional capabilities of VRM, providing an additional level of control and protection. Due to the additional pole, the number of controlled poles increases, which is especially relevant in complex electrical systems requiring flexibility and reliability.
Advantages of additional pole for KARAT IEK VRM
- Contact blades made of high-quality copper, ensuring high conductivity.
- Has a special shape for reliable clamping and breaking of the electrical circuit.
- Securely fixed on the VRM using convenient latches.
Technical specifications of additional pole for KARAT IEK VRM
- Attachment to VRM: left and right.
- Rated current: 125 A.
- Terminal connection capacity: 1.5...35 mm².
- Electrical durability: 7,500 cycles.
- Mechanical durability: 10,000 cycles.
- Operating temperature range: from -25 to +40 °C.
