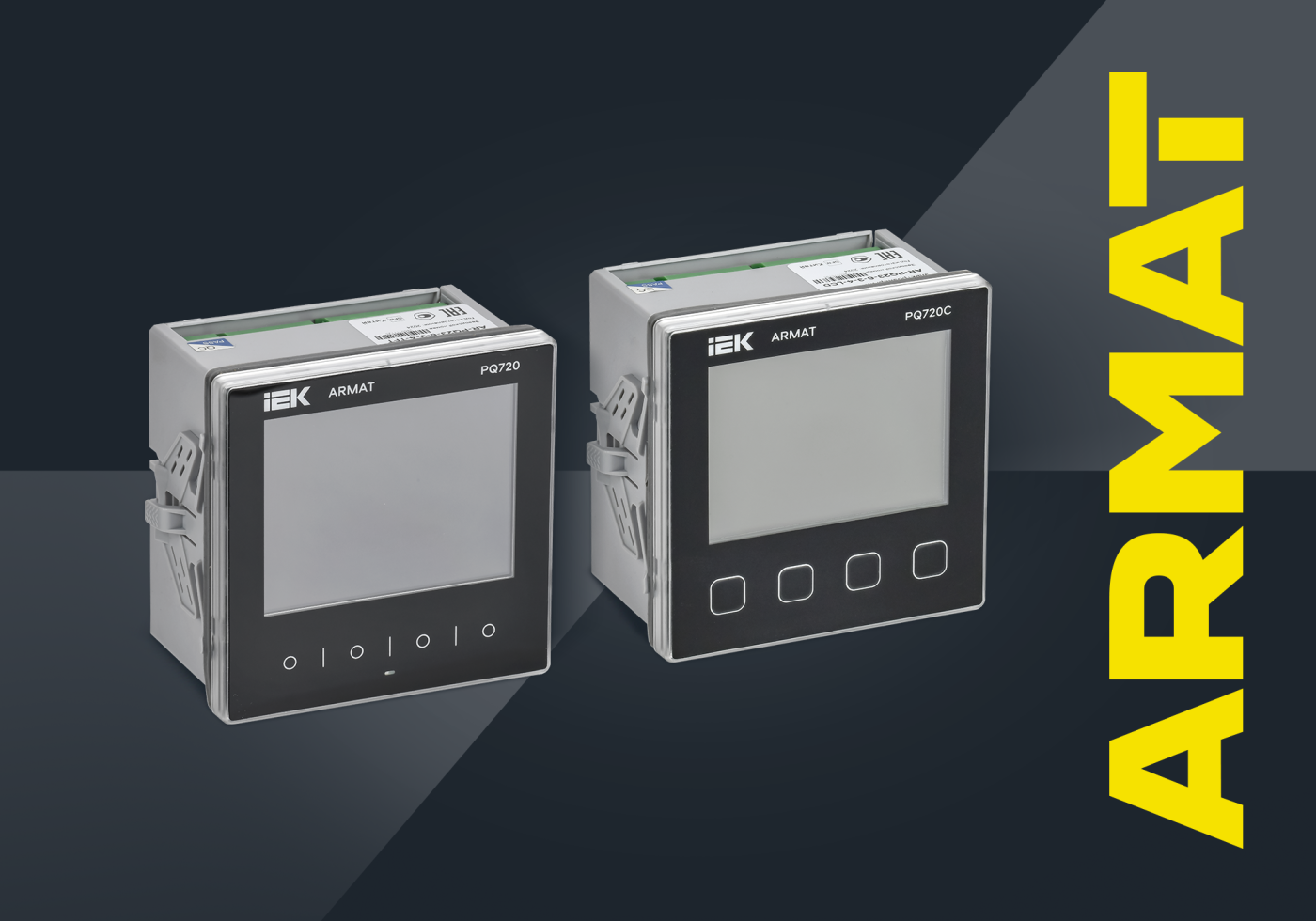

ARMAT PQ720 and PQ720C Power Quality Analyzers— a convenient tool for monitoring power grid parameters
ARMAT power quality analyzers are designed for accurate measurement of three-phase network 400 V parameters, as well as for network parameter monitoring and power quality assessment. Equipped with RS-485 communication interface, solutions with TFT and LCD displays are available.
Can be supplemented with I/O modules for equipment control and system integration with intelligent power distribution systems.
Advantages of ARMAT power analyzers
Can be supplemented with I/O modules for equipment control and system integration with intelligent power distribution systems.
Advantages of ARMAT power analyzers
- Data transmission for dispatching and automation.
- Consumption metering and electricity demand calculation.
- Event log display.
- Calibration interval — 4 years.
- Wide choice of additional modules.
- Possibility to program relay outputs and digital inputs.
- Ingress protection rating IP65.
- Accuracy class: 0.2.
- Measured parameters: V1, V2, V3, U12, U23, U31, I1, I2, I3, P1, P2, P3, PF1, PF2, PF3, Qt, St, F.
- Two relay outputs: DO1 DO2.
- Two digital inputs: DI1 DI2.
- Supply voltage, AC/DC: from 80 to 270 V.
- Data update rate: 1 s.
