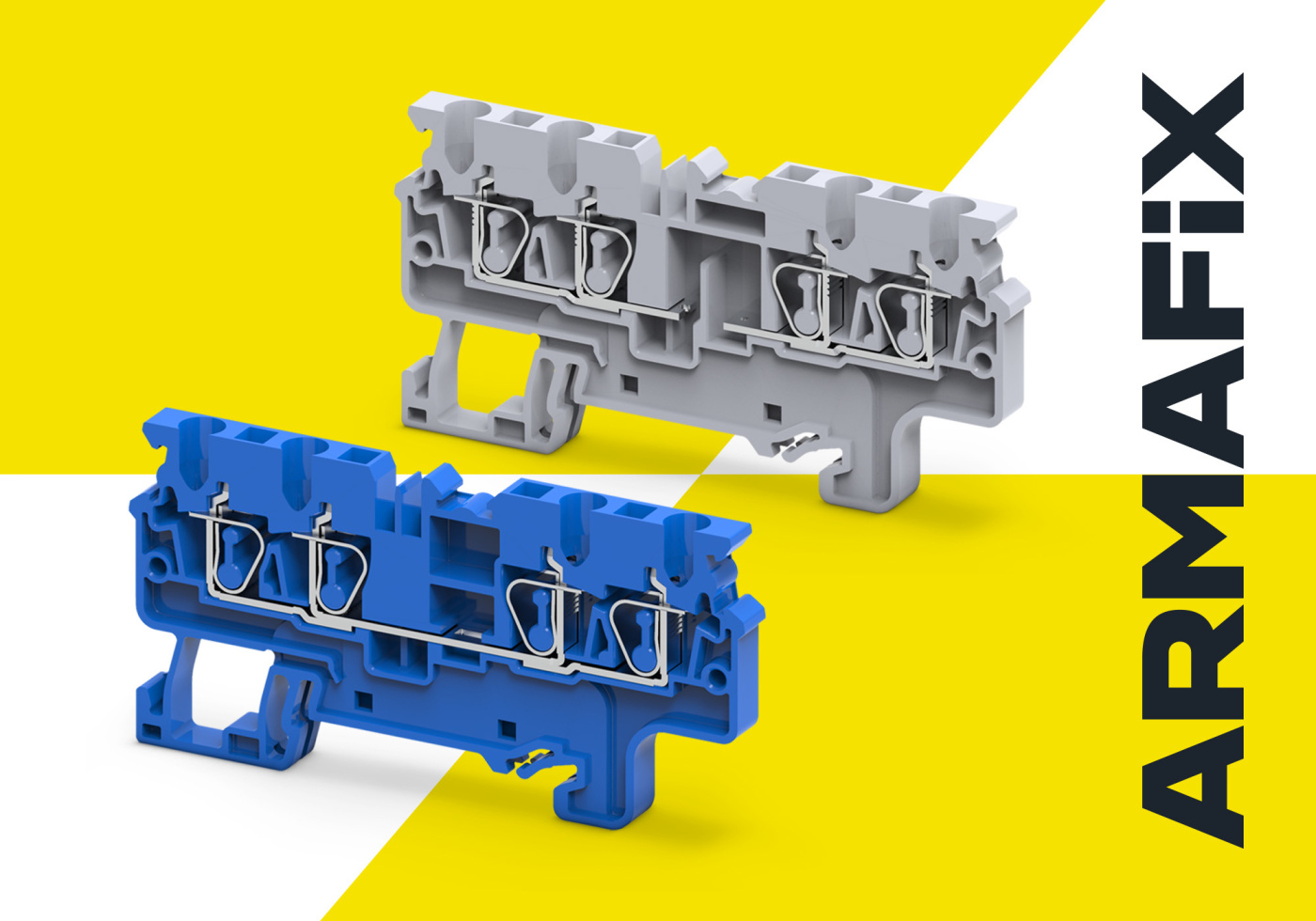

ARMAFIX CX — terminal blocks with spring clamp. Equipped with a cage tension spring and suitable for all types of conductors. The clamp is activated with a slotted screwdriver, the force is automatically adjusted according to the conductor diameter. Front mounting of conductors is possible.

IEK offers a wide range of terminals for industrial applications: 2-, 3- and 4-pole, multi-level feed-through, fuse terminals, disconnect terminals and accessories.

Advantages of ARMAFIX CX terminals

• Provide reliable electrical contact.
• Eliminates possibility of loose fastening or conductor damage after removal.
• High resistance to vibration.
• Mounting up to 40% faster (compared to other series of IEK terminal blocks).
• Plug-in bridges reduce mounting time.
• Two rows of bridging provide connection variability.

Steps for connecting conductors to ARMAFIX CX terminals

Connection of conductors is performed using a slotted screwdriver:

1. Press the spring.
2. Insert the stripped conductor until it stops.
3. Remove the tool — the conductor will be securely fixed in the clamp.
