ARMAT Protection and Switching Devices for Electrical Networks IEK

ARMAT Series Modular Equipment IEK^®

Innovative ARMAT IEK^® line - a new level of technology, quality and reliability.

Reliable protection and switching devices for electrical networks:

Air circuit breakers
Molded case circuit breakers
Modular equipment
Contactors

Technical parameters of ARMAT IEK® devices allow them to be installed on any type of facility: from residential construction to high-tech industrial projects. The products are reliable and meet the strictest Russian and international standards, each product is tested in the laboratory and undergoes multi-stage quality control.

Products

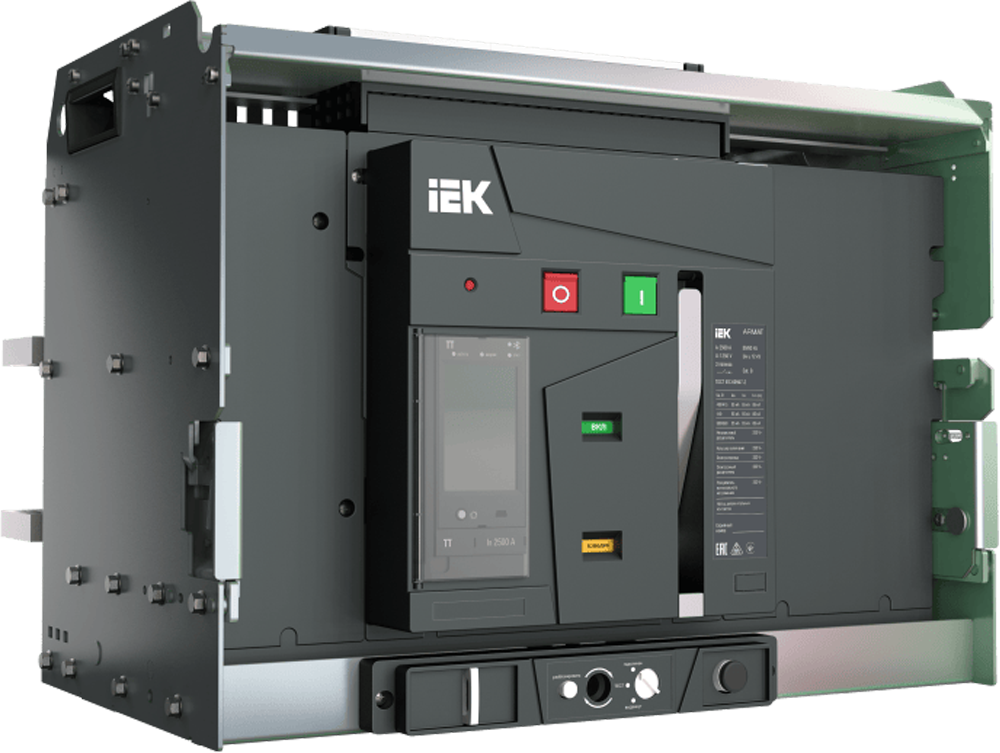

Air Circuit Breakers
- In: from 630 to 6300 A.
- Icu = Ics: from 55 to 150 kA
- Service breaking capacity equals maximum (Icu = Ics).
- Stable operation at elevated temperatures.
- Up to 50,000 mechanical cycles (with maintenance).
- Modbus protocol connection (in TY and TT releases).
- Design: withdrawable and fixed.
Product Range Where to Buy

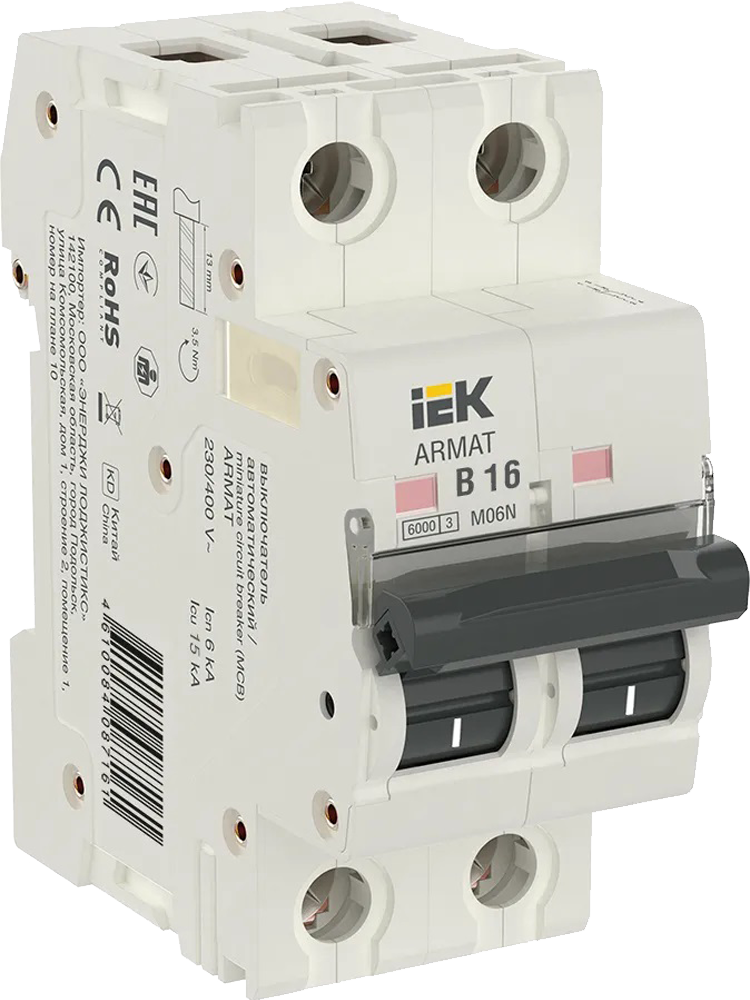

Circuit Breakers
- Number of poles – 1, 2, 3, 4 with protection in all poles.
- Rated current – from 0.5 to 63 A, 19 ratings in total.
- Tripping characteristic type – B, C, D for alternating current.
- Breaking capacity – 6,000 and 10,000 A.
Product Range Where to Buy

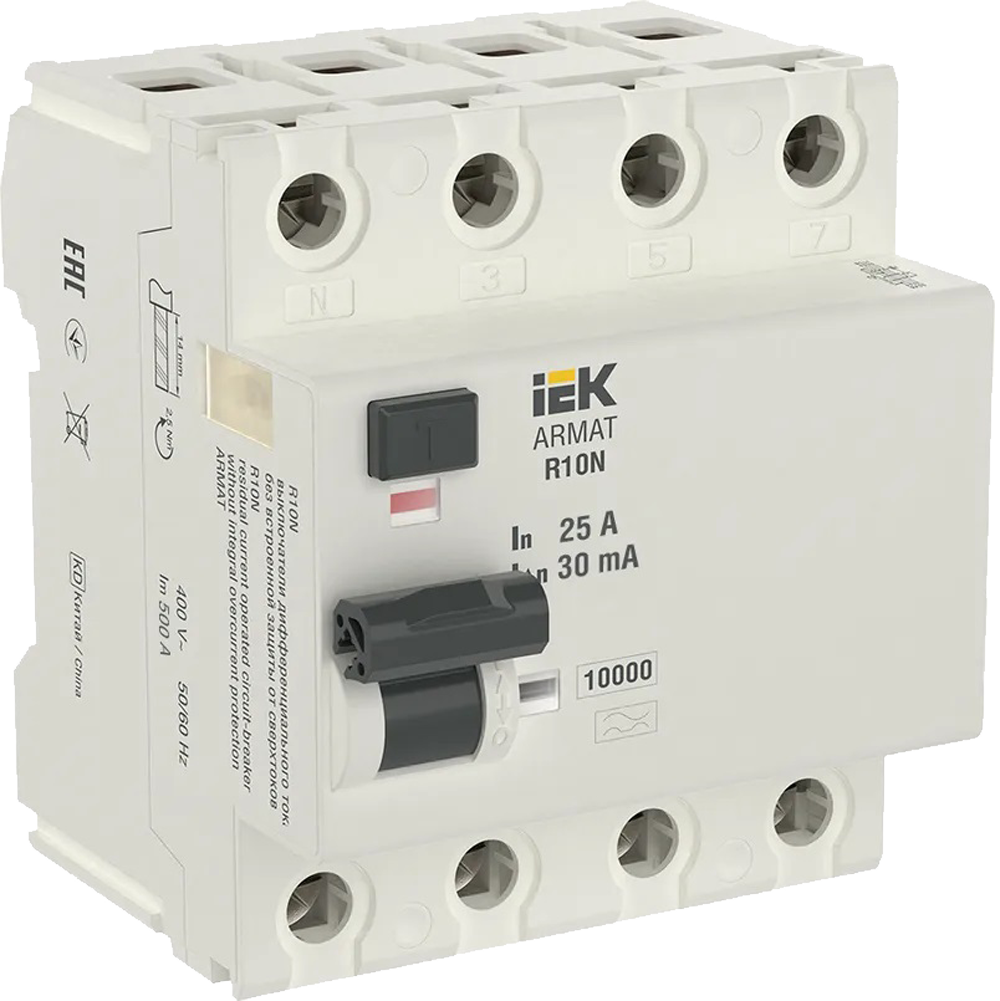

Residual Current Devices (RCD)
- Internal design – independent of power source (electromechanical) with protection against electromagnetic radiation.
- Conditional breaking capacity – 10,000 A.
- Residual current type – AC, A, as well as AC-S, A-S (selective).
- Number of poles – 2 and 4 (size – 2 and 4 modules).
- Rated current – from 25 to 100 A.
- Rated residual operating current – 10, 30, 100, 300 mA.
Product Range Where to Buy

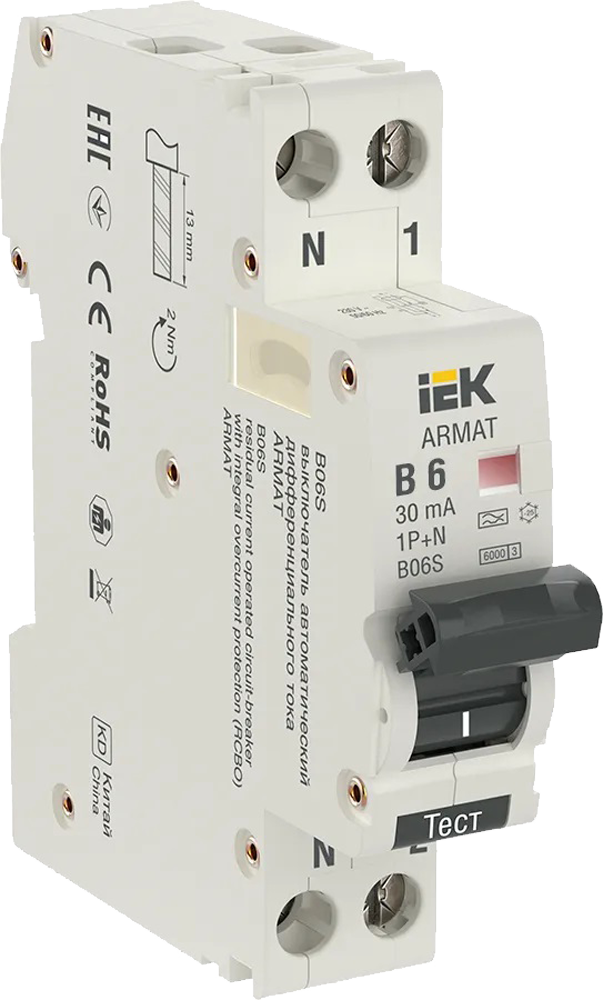

Residual Current Circuit Breakers (RCBO)
- Internal design – electronic.
- Breaking capacity – 6,000 A.
- Residual current type – AC, A.
- Number of poles – 2 (size – 1 module).
- Rated current – from 6 to 32 A (8 ratings).
- Tripping characteristic type – B, C.
- Rated residual operating current – 30 mA.
Product Range Where to Buy

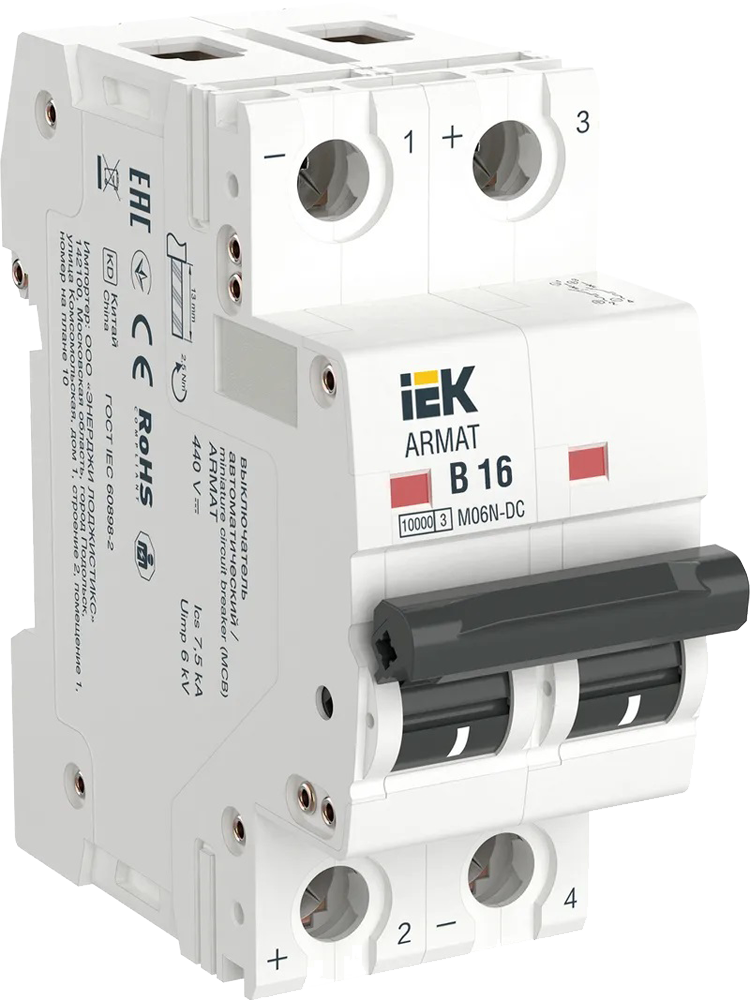

DC Circuit Breakers
- Rated current: from 0.5 to 63 A.
- Overcurrent tripping characteristics: B, C, Z, L, K.
- Mechanical endurance: 20,000 cycles.
  Electrical endurance: 6,000 cycles.
- Connection capability with PIN, FORK busbars.
- Breaking capacity: 10 kA.
Product Range Where to Buy

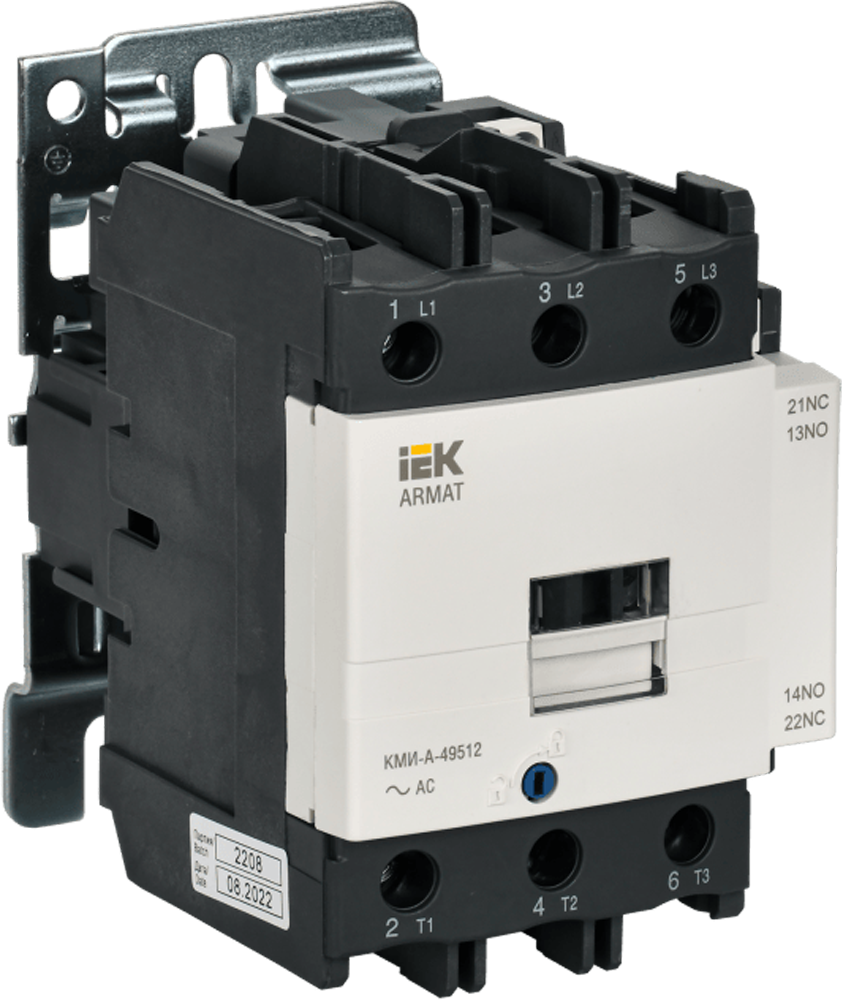

KMI Contactors
- Rated current: from 6 to 95 A.
- Control coil voltages: from 24 to 400 V.
- 15 million cycles mechanical endurance.
- Over 2 million cycles electrical endurance.
- Versatile application.
Product Range Where to Buy
