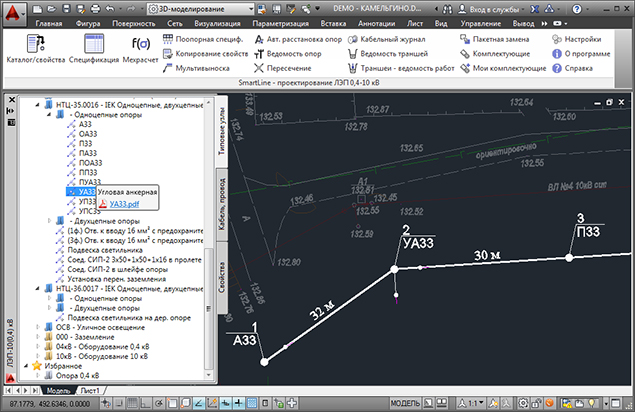

The program contains the entire range of IEK ASIP equipment.

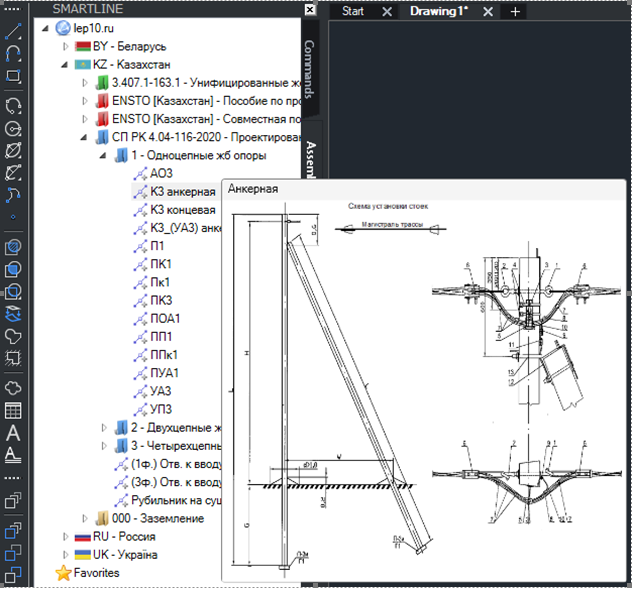

The composition of all units is based on IEK TPR albums:
- NTC-35.0016 Single-circuit, double-circuit and transitional reinforced concrete supports for VLI-0.4 kV with SIP-2 with IEK company line fittings
- NTC-36.0017 Single-circuit, double-circuit and transitional wooden supports for VLI-0.4 kV with SIP-2 with IEK company line fittings
Main features:
- Equipment, products and materials specification according to GOST
21.110-2013 with export to drawing, Excel or Writer - Per-support specification
- Automatic placement of supports
- Calculation of intersections of power lines with engineering structures
- Support list
- Trenches — trench list, work list
- Cable log according to GOST
21.607-2014.
Advantages:
- Free product, including for commercial use
- Online base of typical solutions + its local copy for offline work without internet
- Output documentation in Russian and Ukrainian languages
- Easy drawing exchange — the program does not create its own objects, but maximally uses platform capabilities, thereby eliminating compatibility problems.
