Teslabim — is a set of programs for automating and facilitating the design process of the internal electrical equipment (EE) section in Revit.
Teslabim is a plugin in the Revit toolbar and allows automating the following EE design processes:

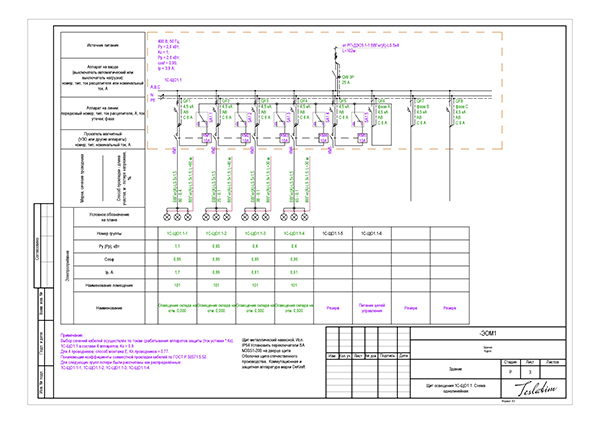

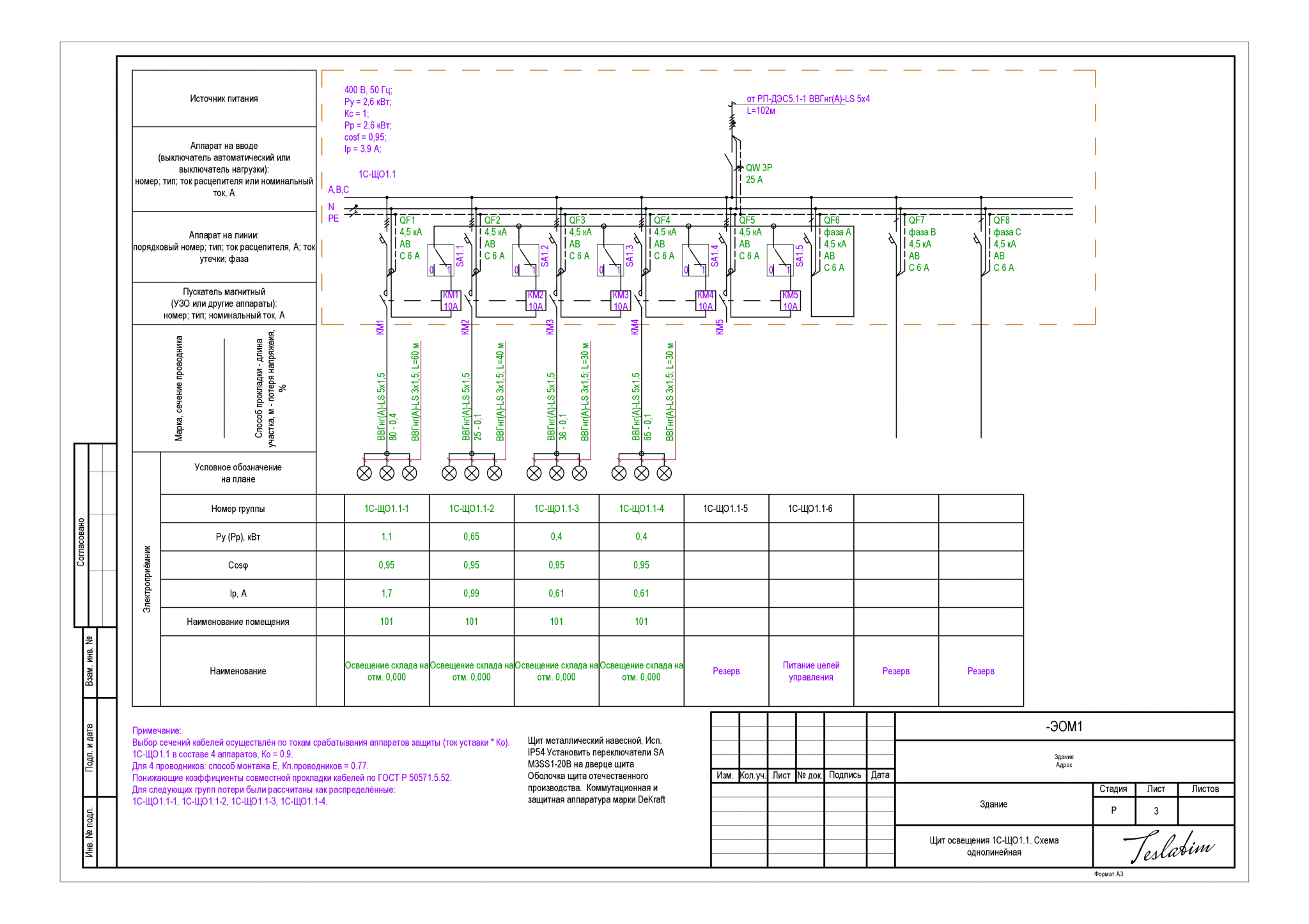

Calculation of single-line schematic diagrams, namely: — calculations of any operating modes of main distribution boards and distribution panels, including according to user formulas - electrical calculations (power, current, losses) of outgoing lines
- phasing
- selection of protection device settings
- selection of cable cross-sections (including taking into account joint laying coefficients)
- calculation of short-circuit currents (SCC).
- Automated placement of luminaires and lighting calculations using export and import to DiaLux.
- Illuminance verification (against specified normative values).
- Synchronization of diagrams with plans (consumer data automatically enters the diagrams from the model).
- Specifications.
- Various useful utilities such as: automatic drawing of fireproof boxes around cable trays, working with parameters (search, replace, etc.) of any families, universal families of terminal devices and working with them, and much more.
- Teslabim settings allow you to set numerous initial data and calculation methods. Thus, the User can configure the Program for themselves as they find convenient.
