30.01.01 Basic controllers

ONI Micro PLC. Expandable version. With built-in screen. 10 discrete inputs (4 as U/I, 2 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. RS485. ethernet. GSM/LTE. Supply voltage 24V DC

ONI Micro PLC. Expandable version. With built-in screen. 10 discrete inputs (4 as U/I, 2 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. RS485. ethernet. Supply voltage 24V DC

ONI Micro PLC. Expandable version. With built-in screen. 16 digital inputs (230V AC), 10 relay outputs. RS485. ethernet. Supply voltage 110-230V AC

ONI Micro PLC. Expandable version. With built-in screen. 16 discrete inputs (4 as 0-20mA, 8 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. 2xRS485. ethernet. WiFi. Supply voltage 24V DC

ONI Micro PLC. Expandable version. With built-in screen. 16 discrete inputs (4 as 0-20mA, 8 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. 2xRS485. ethernet. GSM/LTE/WiFi. Supply voltage 24V DC

Logic relay PLR-S ONI. Expansion module with 4 channels of analog input (0-10V/0..20mA). Supply voltage 12-24 V DC

PLR-S ONI logic relay. Expansion module with 16 relay output channels. Supply voltage 12-24 V DC

PLR-S ONI logic relay. Expansion module with 16 discrete input channels. Supply voltage 12-24 V DC

ONI Programmable Logic Relay. Expandable version. With built-in screen. 10 discrete inputs (6 as 0-10V, 4 as 60kHz), 4 relay outputs. Built-in RS485. Supply voltage 24V DC

Micro PLC ONI. Expandable version. With built-in screen. 12 discrete inputs (4 as 0-20mA, 4 as 0-10V, 4 to 60kHz), 6 transistor outputs (2 to 10kHz). RTC. SD card. RS485. ethernet. Supply voltage 24V DC

Micro PLC ONI. Expandable version. With built-in screen. 16 digital inputs (4 as 0-20mA, 8 as 0-10V, 4 to 60kHz), 4 relay outputs, 2 analog outputs 0-20mA/0-10V. RTC. SD card. 2xRS485. ethernet. Supply voltage 24V DC

ONI Programmable Logic Relay and Micro PLC Expansion Module. 8 discrete inputs (4 as analog 0-10V) and 8 PNP transistor outputs. Supply voltage 24V DC

Programmable logic relay ONI. Expandable version. With built-in screen. 14 digital inputs, 10 relay outputs. Built-in RS485. Supply voltage 220V AC

Micro PLC ONI. Expandable version. With built-in screen. 8 discrete inputs (4 as 0-10V, 4 as 60kHz), 4 relay outputs. RTC. SD card. 2xRS485. ethernet. Supply voltage 24V DC

Micro PLC ONI. Expandable version. With built-in screen. 12 discrete inputs, 6 relay outputs. RTC. SD card. 2xRS485. ethernet. Supply voltage 220V AC

Micro PLC ONI. Expandable version. With built-in screen. 12 digital inputs (4 as 0-20mA, 4 as 0-10V, 4 as 60kHz), 6 relay outputs. RTC. SD card. RS485. ethernet. Supply voltage 24V DC

ONI programmable logic relay. Non-expandable version. No built-in screen. 8 digital inputs, 4 relay outputs. Supply voltage 220V AC

Programmable logic relay ONI. Expandable version. With built-in screen. 10 digital inputs, 4 relay outputs. Built-in RS485. Supply voltage 220V AC

ONI programmable logic relay. Expandable version. With built-in screen. 12 discrete inputs, 6 relay outputs. Supply voltage 220V AC

ONI Programmable Logic Relay and Micro PLC Expansion Module. 8 discrete inputs and 8 relay outputs. Supply voltage 220V AC

ONI Programmable Logic Relay Starter Kit. Includes PLR-S-CPU-1206 and PLR-S-CABLE-USB programming cable. Supply voltage 24V DC

PLR-S logic relay. RS-232 cable for connection to PC and HMI series ONI

PLR-S logic relay. USB cable for connection to ONI series PC

PLR-S logic relay. ONI series CPU module with 8 discrete input channels (4 of which can be used as analog input 0..10V DC) and 4 relay output channels (up to 10A). Built-in RTCs. Up to 64 program blocks. Supply voltage 12-24 V DC. Not extensible.

PLR-S logic relay. ONI series CPU module with 12 digital input channels (6 of which can be used as analog input 0..10 V DC), 6 relay output channels (up to 10A). Built-in high-speed counting channels up to 60 kHz. Built-in display. Built-in RTCs. Up to 1024 program blocks. Supply voltage 12-24 V DC. Expandable.

PLR-S logic relay. ONI series CPU module with 14 digital input channels (6 of which can be used as analog input 0..10 V DC), 10 relay output channels (up to 10A). Built-in display. Built-in RTCs. Up to 512 program blocks. Built-in RS485. Supply voltage 12-24 V DC. Expandable.

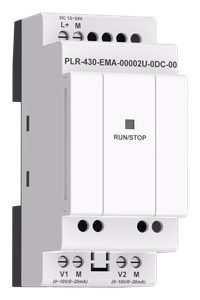

Logic relay PLR-S. Expansion module with 2 analog output channels (0..10V/0..20mA) ONI series. Supply voltage 12-24 V DC

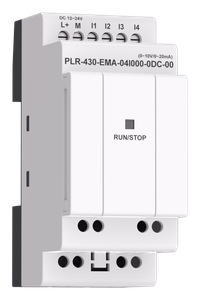

Logic relay PLR-S. Expansion module with 4 channels of analog input (0/4..20mA) ONI series. Supply voltage 12-24 V DC

PLR-S logic relay. Expansion module with 3 channels for connecting PT100 sensors of the ONI series. Supply voltage 12-24 V DC

PLR-S logic relay. RS485 communication extension module of the ONI series. Supply voltage 12-24 V DC

PLR-S logic relay. Expansion module with 8 discrete input channels of the ONI series (4 can be used as analog input 0..10 V DC), 8 relay output channels (up to 10A). Supply voltage 12-24 V DC

Micro PLC ONI. Expandable version. With built-in screen. 16 discrete inputs (4 as 0-20mA, 8 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. 2xRS485. ethernet. Supply voltage 24V DC

Micro PLC ONI. Expandable version. With built-in screen. 16 discrete inputs (4 as 0-20mA, 8 as 0-10V, 4 up to 60kHz), 2 transistor outputs up to 10kHz, 8 relay outputs. RTC. SD card. 2xRS485. ethernet. 2G/4G/GSM. Email. Supply voltage 24V DC

Programmable logic relay ONI. Non-expandable version. With built-in screen. 8 digital inputs (4 as analog 0-10V, 4 up to 60kHz), 4 transistor outputs (2 with PWM up to 10kHz). Supply voltage 24V DC

Programmable logic relay ONI. Expandable version. With built-in screen. 12 digital inputs (6 as 0-10V, 4 up to 60kHz), 4 relay outputs, 2 PNP transistor outputs with PWM up to 10kHz. Supply voltage 24V DC

Programmable logic relay ONI. Expandable version. With screen. 14 discrete inputs (6 - 0-10V, 2 - 0-20mA, 4 - 60kHz), 6 relay outputs, 2 transistor outputs with PWM 10kHz. Analog output 0-20mA + 0-10V. RS485. Supply voltage 24V DC

ONI Programmable Logic Relay Starter Kit. Includes PLR-S-CPU-1206-AC and PLR-S-CABLE-USB programming cable. Supply voltage 220V AC
